Create Databricks Relationships
Script Purpose
This script was created as part of the Tabular Editor x Databricks series. In Unity Catalog it is possible to define primary and foreign key relationships between tables. This script can re-use this information to automatically detect and create relationships in Tabular Editor. Whilst importing the relationships, the script will also hide primary and foreign keys and set IsAvailableInMDX to false (with the exception of DateTime type primary keys). Primary keys are also marked as IsKey = TRUE in the semantic model.
Note
This script requires the Simba Spark ODBC Driver to be installed (download from https://www.databricks.com/spark/odbc-drivers-download)
Each run of the script will prompt the user for a Databricks Personal Access Token. This is required to authenticate to Databricks.
The script utilises the information_schema tables in Unity Catalog to retrieve relationship information, so you may need to double check with your Databricks administrator to make sure you have permission to query these tables.
Script
Create Databricks Relationships
/*
* Title: Create Databricks Relationships
* Author: Johnny Winter, greyskullanalytics.com
*
* This script, when executed, will loop through the currently selected tables and send a query to the Databricks Information Schema tables to see if any foreign keys
* have been defined. Where foreign keys are identified, the script will create relationships between the tables in the semantic model.
* With the exception of dimension columns that are datetime type, key columns will be hidden once relationshsips are created, with primary keys marked as primary keys and IsAvailableInMDX set to false.

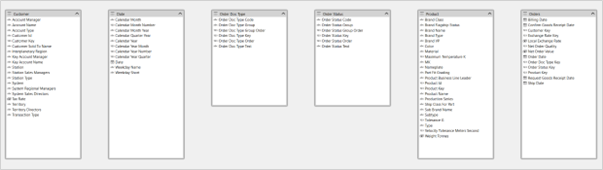

* Step 1: Select one or more tables in the model. These should be tables which have a foreign key relationship defined in Unity Catalog
(typically fact tables, but they could also be bridge tables or outrigger dimensions).
* Step 2: Run this script

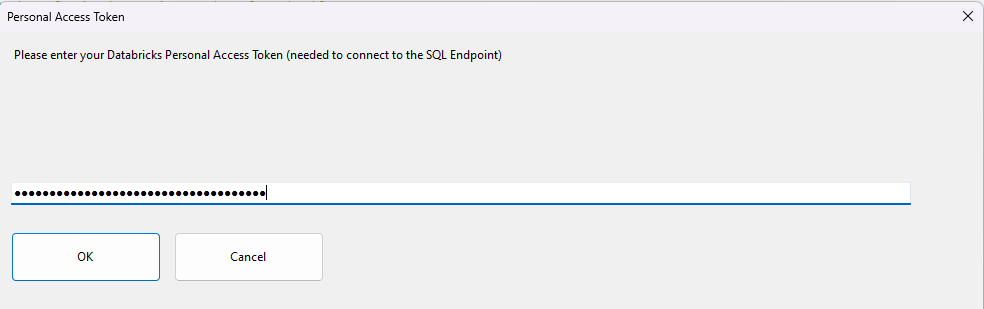

* Step 3: Enter your Databricks Personal Access Token when prompted

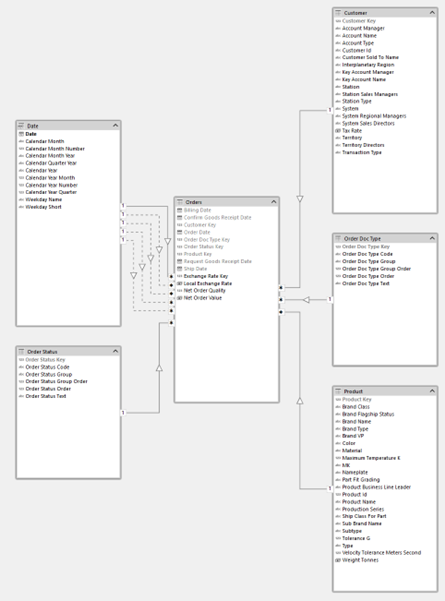

* Step 4: The script will connect to Databricks and detect where foreign keys exist on the selected table.
If the relationship does not already exist in the semantic model, it will be created.
If a relationship already exists between the two tables, the new relationship will be created as inactive
For each table processed, a message box will display the number of relationships created.
* Click OK to continue to the next table.
* Notes:
* - This script requires the Simba Spark ODBC Driver to be installed (download from https://www.databricks.com/spark/odbc-drivers-download)
* - Each run of the script will prompt the user for a Databricks Personal Access Token
*/
#r "Microsoft.VisualBasic"
using System;
using System.Data.Odbc;
using System.Drawing;
using System.Text.RegularExpressions;
using System.Windows.Forms;
using Microsoft.VisualBasic;
using sysData = System.Data;
//code to create a masked input box for Databricks PAT token
public partial class PasswordInputForm : Form
{
public string Password { get; private set; }
private TextBox passwordTextBox;
private Button okButton;
private Button cancelButton;
private Label promptLabel;
public PasswordInputForm(string prompt, string title)
{
InitializeComponent(prompt, title);
}
private void InitializeComponent(string prompt, string title)
{
this.Text = title;
this.Size = new System.Drawing.Size(4000, 1500);
this.StartPosition = FormStartPosition.WindowsDefaultLocation;
this.FormBorderStyle = FormBorderStyle.FixedDialog;
this.MaximizeBox = false;
this.MinimizeBox = false;
// Prompt label
promptLabel = new Label();
promptLabel.Text = prompt;
promptLabel.Location = new System.Drawing.Point(12, 15);
promptLabel.Size = new System.Drawing.Size(360, 40);
promptLabel.AutoSize = false;
this.Controls.Add(promptLabel);
// Password textbox
passwordTextBox = new TextBox();
passwordTextBox.Location = new System.Drawing.Point(12, 55);
passwordTextBox.Size = new System.Drawing.Size(360, 20);
passwordTextBox.UseSystemPasswordChar = true; // This masks the input
passwordTextBox.KeyPress += (s, e) =>
{
if (e.KeyChar == (char)Keys.Return)
{
OkButton_Click(null, null);
e.Handled = true;
}
};
this.Controls.Add(passwordTextBox);
// OK button
okButton = new Button();
okButton.Text = "OK";
okButton.Location = new System.Drawing.Point(216, 85);
okButton.Size = new System.Drawing.Size(150, 50);
okButton.Click += OkButton_Click;
this.Controls.Add(okButton);
// Cancel button
cancelButton = new Button();
cancelButton.Text = "Cancel";
cancelButton.Location = new System.Drawing.Point(297, 85);
cancelButton.Size = new System.Drawing.Size(150, 50);
cancelButton.Click += CancelButton_Click;
this.Controls.Add(cancelButton);
// Set default and cancel buttons
this.AcceptButton = okButton;
this.CancelButton = cancelButton;
// Focus on textbox when form loads
this.Load += (s, e) => passwordTextBox.Focus();
}
private void OkButton_Click(object sender, EventArgs e)
{
Password = passwordTextBox.Text;
this.DialogResult = DialogResult.OK;
this.Close();
}
private void CancelButton_Click(object sender, EventArgs e)
{
Password = string.Empty;
this.DialogResult = DialogResult.Cancel;
this.Close();
}
public static string ShowDialog(string prompt, string title)
{
using (var form = new PasswordInputForm(prompt, title))
{
if (form.ShowDialog() == DialogResult.OK)
return form.Password;
return string.Empty;
}
}
}
public static class MaskedInputHelper
{
public static string GetMaskedInput(string prompt, string title, string defaultValue = "")
{
using (var form = new Form())
{
form.Text = title;
form.Size = new System.Drawing.Size(1000, 500);
form.StartPosition = FormStartPosition.CenterScreen;
form.FormBorderStyle = FormBorderStyle.FixedDialog;
form.MaximizeBox = false;
form.MinimizeBox = false;
var label = new Label()
{
Left = 12,
Top = 15,
Size = new System.Drawing.Size(900, 100),
Text = prompt,
};
var textBox = new TextBox()
{
Left = 12,
Top = 150,
Size = new System.Drawing.Size(900, 100),
UseSystemPasswordChar = true,
Text = defaultValue,
};
var buttonOk = new Button()
{
Text = "OK",
Size = new System.Drawing.Size(150, 50),
Left = 12,
Width = 150,
Top = 200,
DialogResult = DialogResult.OK,
};
var buttonCancel = new Button()
{
Text = "Cancel",
Size = new System.Drawing.Size(150, 50),
Left = 175,
Width = 150,
Top = 200,
DialogResult = DialogResult.Cancel,
};
buttonOk.Click += (sender, e) =>
{
form.Close();
};
form.Controls.Add(label);
form.Controls.Add(textBox);
form.Controls.Add(buttonOk);
form.Controls.Add(buttonCancel);
form.AcceptButton = buttonOk;
form.CancelButton = buttonCancel;
return form.ShowDialog() == DialogResult.OK ? textBox.Text : string.Empty;
}
}
}
//Code to retrieve Databricks Connection information from the M Query in a table partition
public class DatabricksConnectionInfo
{
public string ServerHostname { get; set; }
public string HttpPath { get; set; }
public string DatabaseName { get; set; }
public string SchemaName { get; set; }
public string TableName { get; set; }
public override string ToString()
{
return $"Server: {ServerHostname}\n"
+ $"HTTP Path: {HttpPath}\n"
+ $"Database: {DatabaseName}\n"
+ $"Schema: {SchemaName}\n"
+ $"Table: {TableName}";
}
}
public class PowerQueryMParser
{
public static DatabricksConnectionInfo ParseMQuery(string mQuery)
{
if (string.IsNullOrWhiteSpace(mQuery))
throw new ArgumentException("M query cannot be null or empty");
var connectionInfo = new DatabricksConnectionInfo();
try
{
// Parse Source line to extract server hostname and HTTP path
ParseSourceLine(mQuery, connectionInfo);
// Parse Database line to extract database name
ParseDatabaseLine(mQuery, connectionInfo);
// Parse Schema line to extract schema name
ParseSchemaLine(mQuery, connectionInfo);
// Parse Data line to extract table name
ParseDataLine(mQuery, connectionInfo);
return connectionInfo;
}
catch (Exception ex)
{
throw new InvalidOperationException($"Error parsing M query: {ex.Message}", ex);
}
}
private static void ParseSourceLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match both:
// Source = DatabricksMultiCloud.Catalogs("hostname", "httppath", null),
// Source = Databricks.Catalogs("hostname", "httppath", null),
var sourcePattern =
@"Source\s*=\s*Databricks(?:MultiCloud)?\.Catalogs\s*\(\s*""([^""]+)""\s*,\s*""([^""]+)""\s*,\s*null\s*\)";
var sourceMatch = Regex.Match(
mQuery,
sourcePattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!sourceMatch.Success)
throw new FormatException(
"Could not find valid Source definition in M query (supports both Databricks and DatabricksMultiCloud connectors)"
);
connectionInfo.ServerHostname = sourceMatch.Groups[1].Value;
connectionInfo.HttpPath = sourceMatch.Groups[2].Value;
}
private static void ParseDatabaseLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Database = Source{[Name="databasename",Kind="Database"]}[Data],
var databasePattern =
@"Database\s*=\s*Source\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Database""\s*\]\s*}\s*\[\s*Data\s*\]";
var databaseMatch = Regex.Match(
mQuery,
databasePattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!databaseMatch.Success)
throw new FormatException("Could not find valid Database definition in M query");
connectionInfo.DatabaseName = databaseMatch.Groups[1].Value;
}
private static void ParseSchemaLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Schema = Database{[Name="schemaname",Kind="Schema"]}[Data],
var schemaPattern =
@"Schema\s*=\s*Database\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Schema""\s*\]\s*}\s*\[\s*Data\s*\]";
var schemaMatch = Regex.Match(
mQuery,
schemaPattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!schemaMatch.Success)
throw new FormatException("Could not find valid Schema definition in M query");
connectionInfo.SchemaName = schemaMatch.Groups[1].Value;
}
private static void ParseDataLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Data = Schema{[Name="tablename",Kind="Table"]}[Data]
var dataPattern =
@"Data\s*=\s*Schema\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Table""\s*\]\s*}\s*\[\s*Data\s*\]";
var dataMatch = Regex.Match(
mQuery,
dataPattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!dataMatch.Success)
throw new FormatException("Could not find valid Data definition in M query");
connectionInfo.TableName = dataMatch.Groups[1].Value;
}
}
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//main script
//check that user has a table selected
if (Selected.Tables.Count == 0)
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox("Select one or more tables", MsgBoxStyle.Critical, "Table Required");
return;
}
//prompt for personal access token - required to authenticate to Databricks
string dbxPAT;
do
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
dbxPAT = MaskedInputHelper.GetMaskedInput(
"Please enter your Databricks Personal Access Token (needed to connect to the SQL Endpoint)",
"Personal Access Token"
);
if (string.IsNullOrEmpty(dbxPAT))
{
return; // User cancelled
}
if (string.IsNullOrWhiteSpace(dbxPAT))
{
MessageBox.Show(
"Personal Access Token required",
"Personal Access Token required",
MessageBoxButtons.OK,
MessageBoxIcon.Warning
);
}
} while (string.IsNullOrWhiteSpace(dbxPAT));
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = true;
//for each selected table, get the Databricks connection info from the partition info
foreach (var t in Selected.Tables)
{
string mQuery = t.Partitions[t.Name].Expression;
var connectionInfo = PowerQueryMParser.ParseMQuery(mQuery);
var rels = 0;
// Access individual components
string serverHostname = connectionInfo.ServerHostname;
string httpPath = connectionInfo.HttpPath;
string databaseName = connectionInfo.DatabaseName;
string schemaName = connectionInfo.SchemaName;
string tableName = connectionInfo.TableName;
//use this query to see if any primary/foreign key relationships have been defined in Unity Catalog
var query =
@"
SELECT
fk.table_catalog AS fk_table_catalog,
fk.table_schema AS fk_table_schema,
fk.table_name AS fk_table_name,
fk.column_name AS fk_column,
pk.table_catalog AS pk_table_catalog,
pk. table_schema AS pk_table_schema,
pk.table_name AS pk_table_name,
pk.column_name AS pk_column
FROM
"
+ databaseName
+ @".information_schema.key_column_usage fk
INNER JOIN "
+ databaseName
+ @".information_schema.referential_constraints rc
ON fk.constraint_catalog = rc.constraint_catalog
AND fk.constraint_schema = rc.constraint_schema
AND fk.constraint_name = rc.constraint_name
INNER JOIN "
+ databaseName
+ @".information_schema.key_column_usage pk
ON rc.unique_constraint_catalog = pk.constraint_catalog
AND rc.unique_constraint_schema = pk.constraint_schema
AND rc.unique_constraint_name = pk.constraint_name
WHERE
fk.table_schema = '"
+ schemaName
+ @"'
AND fk.table_name = '"
+ tableName
+ @"'
AND fk.position_in_unique_constraint = 1
";
//set DBX connection string
var odbcConnStr =
@"DSN=Simba Spark;driver=C:\Program Files\Simba Spark ODBC Driver;host="
+ serverHostname
+ ";port=443;httppath="
+ httpPath
+ ";thrifttransport=2;ssl=1;authmech=3;uid=token;pwd="
+ dbxPAT;
//test connection
OdbcConnection conn = new OdbcConnection(odbcConnStr);
try
{
conn.Open();
}
catch
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
@"Connection failed
Please check the following prequisites:
- you must have the Simba Spark ODBC Driver installed
(download from https://www.databricks.com/spark/odbc-drivers-download)
- the ODBC driver must be installed in the path C:\Program Files\Simba Spark ODBC Driver
- check that the Databricks server name "
+ serverHostname
+ @" is correct
- check that the Databricks SQL endpoint / HTTP Path "
+ httpPath
+ @" is correct
- check that you have used a valid Personal Access Token",
MsgBoxStyle.Critical,
"Connection Error"
);
return;
}
//send query
OdbcDataAdapter da = new OdbcDataAdapter(query, conn);
var dbxRelationships = new sysData.DataTable();
try
{
da.Fill(dbxRelationships);
}
catch
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
@"Connection failed
Either:
- the table "
+ schemaName
+ "."
+ tableName
+ " does not exist"
+ @"
- you do not have permissions to query this table
- the connection timed out. Please check that the SQL Endpoint cluster is running",
MsgBoxStyle.Critical,
"Connection Error"
);
return;
}
//for every table in the model, see if it matches a row in the Databricks query
foreach (var dt in Model.Tables)
{
//get the source table information
string sourceMQuery = dt.Partitions[dt.Name].Expression;
var sourceConnectionInfo = PowerQueryMParser.ParseMQuery(sourceMQuery);
// Access individual components
string sourceSchemaName = sourceConnectionInfo.SchemaName;
string sourceTableName = sourceConnectionInfo.TableName;
foreach (sysData.DataRow row in dbxRelationships.Rows)
{
if (
string.Equals(
sourceSchemaName + "." + sourceTableName,
row["pk_table_schema"].ToString() + "." + row["pk_table_name"].ToString(),
StringComparison.OrdinalIgnoreCase
)
)
{
var dimTable = dt;
foreach (var dc in dt.DataColumns)
if (dc.SourceColumn == row["pk_column"].ToString())
{
var dimColumn = dc;
foreach (var fc in t.DataColumns)
if (fc.SourceColumn == row["fk_column"].ToString())
{
var factColumn = fc;
// Check whether a relationship already exists between the two columns:
if (
!Model.Relationships.Any(r =>
r.FromColumn == factColumn && r.ToColumn == dimColumn
)
)
{
// If relationships already exists between the two tables, new relationships will be created as inactive:
var makeInactive = Model.Relationships.Any(r =>
r.FromTable == t && r.ToTable == dimTable
);
// Add the new relationship:
var rel = Model.AddRelationship();
rel.FromColumn = factColumn;
rel.ToColumn = dimColumn;
factColumn.IsHidden = true;
factColumn.IsAvailableInMDX = false;
dimColumn.IsKey = true;
if (dc.DataType != DataType.DateTime)
{
dimColumn.IsHidden = true;
dimColumn.IsAvailableInMDX = false;
}
if (makeInactive)
rel.IsActive = false;
rels = rels + 1;
}
}
}
}
}
}
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
rels + " relationships added to " + t.Name,
MsgBoxStyle.Information,
"Add relationships"
);
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = true;
conn.Close();
}
Explanation
The script uses WinForms to prompt for a Databricks personal access token, used to authenticate to Databricks. For each selected table, the script retrieves the Databricks connection string information and schema and table name from the M query in the selected table's partition. Using the Spark ODBC driver it then sends a SQL query to Databricks that queries the information_schema tables to find any foreign key relationships for the table that are defined in Unity Catalog. For each row returned in the SQL query, the script looks for matching table and column names in the model and where a relationship does not already exist, a new one is created. For role playing dimensions, where the same table might have multiple foreign keys relating to a single table, the first relationship detected will be the active one, and all other subsequent relationships are created as inactive. The script will also hide primary and foreign keys and set IsAvailableInMDX to false (with the exception of DateTime type primary keys). Primary keys are also marked as IsKey = TRUE in the semantic model. After the script has run for each selected table, a dialogue box will appear showing how many new relationships were created.
Example Output
