Crear relaciones de Databricks
Objetivo del script
Este script se creó como parte de la serie Tabular Editor x Databricks. En Unity Catalog es posible definir relaciones de clave primaria y foránea entre tablas. Este script puede reutilizar esta información para detectar y crear automáticamente relaciones en Tabular Editor. Al importar las relaciones, el script también ocultará las claves principales y foráneas y establecerá IsAvailableInMDX en false (excepto en el caso de las claves principales de tipo DateTime). Las claves principales también se marcan como IsKey = TRUE en el modelo semántico.
Note
Este script requiere un controlador ODBC de Databricks. Recomendamos el nuevo Databricks ODBC Driver, que sustituye al Simba Spark ODBC Driver heredado. El script detecta automáticamente qué controlador está instalado y lo usa en consecuencia.
En cada ejecución del script, se te solicitará un token de acceso personal de Databricks. Esto es necesario para autenticarse en Databricks.
El script utiliza las tablas information_schema de Unity Catalog para recuperar información sobre las relaciones, por lo que quizá deba consultarlo con su administrador de Databricks para asegurarse de que tiene permisos para consultarlas.
Script
Crear relaciones de Databricks
/*
* Title: Create Databricks Relationships
* Author: Johnny Winter, greyskullanalytics.com
*
* This script, when executed, will loop through the currently selected tables and send a query to the Databricks Information Schema tables to see if any foreign keys
* have been defined. Where foreign keys are identified, the script will create relationships between the tables in the semantic model.
* With the exception of dimension columns that are datetime type, key columns will be hidden once relationshsips are created, with primary keys marked as primary keys and IsAvailableInMDX set to false.
* Step 1: Select one or more tables in the model. These should be tables which have a foreign key relationship defined in Unity Catalog
(typically fact tables, but they could also be bridge tables or outrigger dimensions).
* Step 2: Run this script
* Step 3: Enter your Databricks Personal Access Token when prompted
* Step 4: The script will connect to Databricks and detect where foreign keys exist on the selected table.
If the relationship does not already exist in the semantic model, it will be created.
If a relationship already exists between the two tables, the new relationship will be created as inactive
For each table processed, a message box will display the number of relationships created.
* Click OK to continue to the next table.
* Notes:
* - This script requires the Databricks ODBC Driver (recommended) or legacy Simba Spark ODBC Driver to be installed (download from https://www.databricks.com/spark/odbc-drivers-download)
* - The script auto-detects which driver is installed
* - Each run of the script will prompt the user for a Databricks Personal Access Token
*/
#r "Microsoft.VisualBasic"
using System;
using System.Data.Odbc;
using System.Drawing;
using System.Text.RegularExpressions;
using System.Windows.Forms;
using Microsoft.VisualBasic;
using sysData = System.Data;
//code to create a masked input box for Databricks PAT token
public partial class PasswordInputForm : Form
{
public string Password { get; private set; }
private TextBox passwordTextBox;
private Button okButton;
private Button cancelButton;
private Label promptLabel;
public PasswordInputForm(string prompt, string title)
{
InitializeComponent(prompt, title);
}
private void InitializeComponent(string prompt, string title)
{
this.Text = title;
this.Size = new System.Drawing.Size(4000, 1500);
this.StartPosition = FormStartPosition.WindowsDefaultLocation;
this.FormBorderStyle = FormBorderStyle.FixedDialog;
this.MaximizeBox = false;
this.MinimizeBox = false;
// Prompt label
promptLabel = new Label();
promptLabel.Text = prompt;
promptLabel.Location = new System.Drawing.Point(12, 15);
promptLabel.Size = new System.Drawing.Size(360, 40);
promptLabel.AutoSize = false;
this.Controls.Add(promptLabel);
// Password textbox
passwordTextBox = new TextBox();
passwordTextBox.Location = new System.Drawing.Point(12, 55);
passwordTextBox.Size = new System.Drawing.Size(360, 20);
passwordTextBox.UseSystemPasswordChar = true; // This masks the input
passwordTextBox.KeyPress += (s, e) =>
{
if (e.KeyChar == (char)Keys.Return)
{
OkButton_Click(null, null);
e.Handled = true;
}
};
this.Controls.Add(passwordTextBox);
// OK button
okButton = new Button();
okButton.Text = "OK";
okButton.Location = new System.Drawing.Point(216, 85);
okButton.Size = new System.Drawing.Size(150, 50);
okButton.Click += OkButton_Click;
this.Controls.Add(okButton);
// Cancel button
cancelButton = new Button();
cancelButton.Text = "Cancel";
cancelButton.Location = new System.Drawing.Point(297, 85);
cancelButton.Size = new System.Drawing.Size(150, 50);
cancelButton.Click += CancelButton_Click;
this.Controls.Add(cancelButton);
// Set default and cancel buttons
this.AcceptButton = okButton;
this.CancelButton = cancelButton;
// Focus on textbox when form loads
this.Load += (s, e) => passwordTextBox.Focus();
}
private void OkButton_Click(object sender, EventArgs e)
{
Password = passwordTextBox.Text;
this.DialogResult = DialogResult.OK;
this.Close();
}
private void CancelButton_Click(object sender, EventArgs e)
{
Password = string.Empty;
this.DialogResult = DialogResult.Cancel;
this.Close();
}
public static string ShowDialog(string prompt, string title)
{
using (var form = new PasswordInputForm(prompt, title))
{
if (form.ShowDialog() == DialogResult.OK)
return form.Password;
return string.Empty;
}
}
}
public static class MaskedInputHelper
{
public static string GetMaskedInput(string prompt, string title, string defaultValue = "")
{
using (var form = new Form())
{
form.Text = title;
form.Size = new System.Drawing.Size(1000, 500);
form.StartPosition = FormStartPosition.CenterScreen;
form.FormBorderStyle = FormBorderStyle.FixedDialog;
form.MaximizeBox = false;
form.MinimizeBox = false;
var label = new Label()
{
Left = 12,
Top = 15,
Size = new System.Drawing.Size(900, 100),
Text = prompt,
};
var textBox = new TextBox()
{
Left = 12,
Top = 150,
Size = new System.Drawing.Size(900, 100),
UseSystemPasswordChar = true,
Text = defaultValue,
};
var buttonOk = new Button()
{
Text = "OK",
Size = new System.Drawing.Size(150, 50),
Left = 12,
Width = 150,
Top = 200,
DialogResult = DialogResult.OK,
};
var buttonCancel = new Button()
{
Text = "Cancel",
Size = new System.Drawing.Size(150, 50),
Left = 175,
Width = 150,
Top = 200,
DialogResult = DialogResult.Cancel,
};
buttonOk.Click += (sender, e) =>
{
form.Close();
};
form.Controls.Add(label);
form.Controls.Add(textBox);
form.Controls.Add(buttonOk);
form.Controls.Add(buttonCancel);
form.AcceptButton = buttonOk;
form.CancelButton = buttonCancel;
return form.ShowDialog() == DialogResult.OK ? textBox.Text : string.Empty;
}
}
}
//Code to retrieve Databricks Connection information from the M Query in a table partition
public class DatabricksConnectionInfo
{
public string ServerHostname { get; set; }
public string HttpPath { get; set; }
public string DatabaseName { get; set; }
public string SchemaName { get; set; }
public string TableName { get; set; }
public override string ToString()
{
return $"Server: {ServerHostname}\n"
+ $"HTTP Path: {HttpPath}\n"
+ $"Database: {DatabaseName}\n"
+ $"Schema: {SchemaName}\n"
+ $"Table: {TableName}";
}
}
public class PowerQueryMParser
{
public static DatabricksConnectionInfo ParseMQuery(string mQuery)
{
if (string.IsNullOrWhiteSpace(mQuery))
throw new ArgumentException("M query cannot be null or empty");
var connectionInfo = new DatabricksConnectionInfo();
try
{
// Parse Source line to extract server hostname and HTTP path
ParseSourceLine(mQuery, connectionInfo);
// Parse Database line to extract database name
ParseDatabaseLine(mQuery, connectionInfo);
// Parse Schema line to extract schema name
ParseSchemaLine(mQuery, connectionInfo);
// Parse Data line to extract table name
ParseDataLine(mQuery, connectionInfo);
return connectionInfo;
}
catch (Exception ex)
{
throw new InvalidOperationException($"Error parsing M query: {ex.Message}", ex);
}
}
private static void ParseSourceLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match both:
// Source = DatabricksMultiCloud.Catalogs("hostname", "httppath", null),
// Source = Databricks.Catalogs("hostname", "httppath", null),
var sourcePattern =
@"Source\s*=\s*Databricks(?:MultiCloud)?\.Catalogs\s*\(\s*""([^""]+)""\s*,\s*""([^""]+)""\s*,\s*null\s*\)";
var sourceMatch = Regex.Match(
mQuery,
sourcePattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!sourceMatch.Success)
throw new FormatException(
"Could not find valid Source definition in M query (supports both Databricks and DatabricksMultiCloud connectors)"
);
connectionInfo.ServerHostname = sourceMatch.Groups[1].Value;
connectionInfo.HttpPath = sourceMatch.Groups[2].Value;
}
private static void ParseDatabaseLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Database = Source{[Name="databasename",Kind="Database"]}[Data],
var databasePattern =
@"Database\s*=\s*Source\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Database""\s*\]\s*}\s*\[\s*Data\s*\]";
var databaseMatch = Regex.Match(
mQuery,
databasePattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!databaseMatch.Success)
throw new FormatException("Could not find valid Database definition in M query");
connectionInfo.DatabaseName = databaseMatch.Groups[1].Value;
}
private static void ParseSchemaLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Schema = Database{[Name="schemaname",Kind="Schema"]}[Data],
var schemaPattern =
@"Schema\s*=\s*Database\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Schema""\s*\]\s*}\s*\[\s*Data\s*\]";
var schemaMatch = Regex.Match(
mQuery,
schemaPattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!schemaMatch.Success)
throw new FormatException("Could not find valid Schema definition in M query");
connectionInfo.SchemaName = schemaMatch.Groups[1].Value;
}
private static void ParseDataLine(string mQuery, DatabricksConnectionInfo connectionInfo)
{
// Pattern to match: Data = Schema{[Name="tablename",Kind="Table"]}[Data]
var dataPattern =
@"Data\s*=\s*Schema\s*{\s*\[\s*Name\s*=\s*""([^""]+)""\s*,\s*Kind\s*=\s*""Table""\s*\]\s*}\s*\[\s*Data\s*\]";
var dataMatch = Regex.Match(
mQuery,
dataPattern,
RegexOptions.IgnoreCase | RegexOptions.Multiline
);
if (!dataMatch.Success)
throw new FormatException("Could not find valid Data definition in M query");
connectionInfo.TableName = dataMatch.Groups[1].Value;
}
}
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//main script
//check that user has a table selected
if (Selected.Tables.Count == 0)
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox("Select one or more tables", MsgBoxStyle.Critical, "Table Required");
return;
}
//prompt for personal access token - required to authenticate to Databricks
string dbxPAT;
do
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
dbxPAT = MaskedInputHelper.GetMaskedInput(
"Please enter your Databricks Personal Access Token (needed to connect to the SQL Endpoint)",
"Personal Access Token"
);
if (string.IsNullOrEmpty(dbxPAT))
{
return; // User cancelled
}
if (string.IsNullOrWhiteSpace(dbxPAT))
{
MessageBox.Show(
"Personal Access Token required",
"Personal Access Token required",
MessageBoxButtons.OK,
MessageBoxIcon.Warning
);
}
} while (string.IsNullOrWhiteSpace(dbxPAT));
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = true;
// auto-detect Databricks ODBC driver
string driverPath;
string newDriverPath = @"C:\Program Files\Databricks ODBC Driver";
string legacyDriverPath = @"C:\Program Files\Simba Spark ODBC Driver";
if (System.IO.Directory.Exists(newDriverPath))
{
driverPath = newDriverPath;
}
else if (System.IO.Directory.Exists(legacyDriverPath))
{
driverPath = legacyDriverPath;
}
else
{
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
@"No Databricks ODBC driver found.
Please install the Databricks ODBC Driver from:
https://www.databricks.com/spark/odbc-drivers-download
Expected installation paths:
" + newDriverPath + @"
" + legacyDriverPath,
MsgBoxStyle.Critical,
"ODBC Driver Not Found"
);
return;
}
//for each selected table, get the Databricks connection info from the partition info
foreach (var t in Selected.Tables)
{
string mQuery = t.Partitions[t.Name].Expression;
var connectionInfo = PowerQueryMParser.ParseMQuery(mQuery);
var rels = 0;
// Access individual components
string serverHostname = connectionInfo.ServerHostname;
string httpPath = connectionInfo.HttpPath;
string databaseName = connectionInfo.DatabaseName;
string schemaName = connectionInfo.SchemaName;
string tableName = connectionInfo.TableName;
//use this query to see if any primary/foreign key relationships have been defined in Unity Catalog
var query =
@"
SELECT
fk.table_catalog AS fk_table_catalog,
fk.table_schema AS fk_table_schema,
fk.table_name AS fk_table_name,
fk.column_name AS fk_column,
pk.table_catalog AS pk_table_catalog,
pk. table_schema AS pk_table_schema,
pk.table_name AS pk_table_name,
pk.column_name AS pk_column
FROM
"
+ databaseName
+ @".information_schema.key_column_usage fk
INNER JOIN "
+ databaseName
+ @".information_schema.referential_constraints rc
ON fk.constraint_catalog = rc.constraint_catalog
AND fk.constraint_schema = rc.constraint_schema
AND fk.constraint_name = rc.constraint_name
INNER JOIN "
+ databaseName
+ @".information_schema.key_column_usage pk
ON rc.unique_constraint_catalog = pk.constraint_catalog
AND rc.unique_constraint_schema = pk.constraint_schema
AND rc.unique_constraint_name = pk.constraint_name
WHERE
fk.table_schema = '"
+ schemaName
+ @"'
AND fk.table_name = '"
+ tableName
+ @"'
AND fk.position_in_unique_constraint = 1
";
//set DBX connection string
var odbcConnStr =
@"Driver=" + driverPath + ";Host="
+ serverHostname
+ ";Port=443;HTTPPath="
+ httpPath
+ ";SSL=1;ThriftTransport=2;AuthMech=3;UID=token;PWD="
+ dbxPAT;
//test connection
OdbcConnection conn = new OdbcConnection(odbcConnStr);
try
{
conn.Open();
}
catch
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
@"Connection failed (using driver: " + driverPath + @")
Please check the following prerequisites:
- you must have the Databricks ODBC Driver installed
(download from https://www.databricks.com/spark/odbc-drivers-download)
- check that the Databricks server name "
+ serverHostname
+ @" is correct
- check that the Databricks SQL endpoint / HTTP Path "
+ httpPath
+ @" is correct
- check that you have used a valid Personal Access Token",
MsgBoxStyle.Critical,
"Connection Error"
);
return;
}
//send query
OdbcDataAdapter da = new OdbcDataAdapter(query, conn);
var dbxRelationships = new sysData.DataTable();
try
{
da.Fill(dbxRelationships);
}
catch
{
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
@"Connection failed
Either:
- the table "
+ schemaName
+ "."
+ tableName
+ " does not exist"
+ @"
- you do not have permissions to query this table
- the connection timed out. Please check that the SQL Endpoint cluster is running",
MsgBoxStyle.Critical,
"Connection Error"
);
return;
}
//for every table in the model, see if it matches a row in the Databricks query
foreach (var dt in Model.Tables)
{
//get the source table information
string sourceMQuery = dt.Partitions[dt.Name].Expression;
var sourceConnectionInfo = PowerQueryMParser.ParseMQuery(sourceMQuery);
// Access individual components
string sourceSchemaName = sourceConnectionInfo.SchemaName;
string sourceTableName = sourceConnectionInfo.TableName;
foreach (sysData.DataRow row in dbxRelationships.Rows)
{
if (
string.Equals(
sourceSchemaName + "." + sourceTableName,
row["pk_table_schema"].ToString() + "." + row["pk_table_name"].ToString(),
StringComparison.OrdinalIgnoreCase
)
)
{
var dimTable = dt;
foreach (var dc in dt.DataColumns)
if (dc.SourceColumn == row["pk_column"].ToString())
{
var dimColumn = dc;
foreach (var fc in t.DataColumns)
if (fc.SourceColumn == row["fk_column"].ToString())
{
var factColumn = fc;
// Check whether a relationship already exists between the two columns:
if (
!Model.Relationships.Any(r =>
r.FromColumn == factColumn && r.ToColumn == dimColumn
)
)
{
// If relationships already exists between the two tables, new relationships will be created as inactive:
var makeInactive = Model.Relationships.Any(r =>
r.FromTable == t && r.ToTable == dimTable
);
// Add the new relationship:
var rel = Model.AddRelationship();
rel.FromColumn = factColumn;
rel.ToColumn = dimColumn;
factColumn.IsHidden = true;
factColumn.IsAvailableInMDX = false;
dimColumn.IsKey = true;
if (dc.DataType != DataType.DateTime)
{
dimColumn.IsHidden = true;
dimColumn.IsAvailableInMDX = false;
}
if (makeInactive)
rel.IsActive = false;
rels = rels + 1;
}
}
}
}
}
}
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
Interaction.MsgBox(
rels + " relationships added to " + t.Name,
MsgBoxStyle.Information,
"Add relationships"
);
// toggle the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = true;
conn.Close();
}
Explicación
El script usa WinForms para solicitar un token de acceso personal de Databricks, que se utiliza para autenticarse en Databricks. Detecta automáticamente si está instalado el nuevo Databricks ODBC Driver o el controlador heredado Simba Spark ODBC Driver. Para cada tabla seleccionada, el script recupera la información de la cadena de conexión de Databricks y el esquema y el nombre de la tabla a partir de la consulta M de la partición de la tabla seleccionada. A continuación, con el controlador ODBC detectado, envía a Databricks una consulta SQL que consulta las tablas information_schema para encontrar cualquier relación de clave foránea definida en Unity Catalog para esa tabla. Para cada fila devuelta en la consulta SQL, el script busca en el modelo nombres de tablas y columnas coincidentes y, si aún no existe una relación, crea una nueva. En las dimensiones con roles, donde la misma tabla puede tener varias claves externas relacionadas con una sola tabla, la primera relación detectada será la activa y todas las demás relaciones posteriores se crearán como inactivas. El script también ocultará las claves primarias y foráneas, y establecerá IsAvailableInMDX en false (con la excepción de las claves primarias de tipo DateTime). Las claves primarias también se marcan como IsKey = TRUE en el modelo semántico. Después de ejecutar el script para cada tabla seleccionada, aparecerá un cuadro de diálogo que mostrará cuántas relaciones nuevas se han creado.

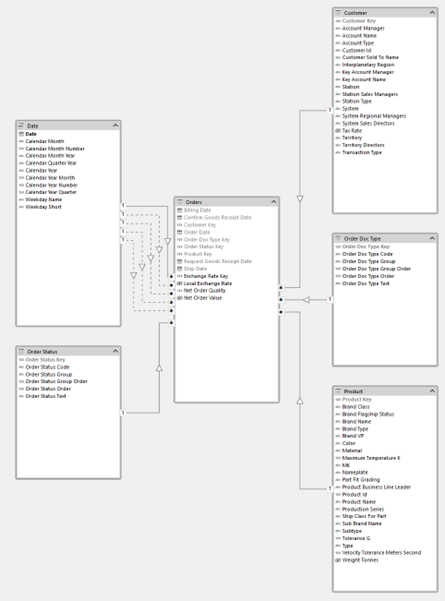

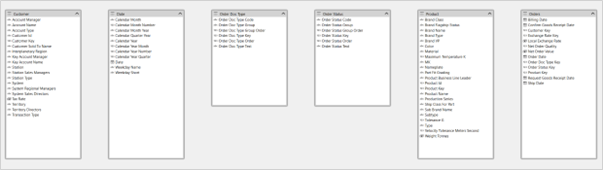

Salida de ejemplo
