Crear una tabla de fechas
Propósito del script
Puedes usar este script para crear una tabla de fechas nueva, organizada y configurada, a partir de 1-2 columnas de fecha seleccionadas en el modelo. La primera columna seleccionada debe contener la fecha más antigua y la segunda, la fecha más reciente. Ambas deben estar seleccionadas antes de ejecutar el script o la macro.
Este script creará los siguientes objetos en el modelo:
- Una medida
[RefDate], que tendrá la fecha más reciente en el ámbito del modelo; es decir, el último día de ventas. Puedes ajustar esta medida manualmente y volver a procesar la tabla de fechas para regenerarla en función de una fecha de referencia diferente (es decir, si quieres cambiarla por TODAY() o agregar un filtro) - La tabla
'Date': la tabla se puede configurar en una ventana de Consulta DAX independiente y copiarse de nuevo en el script si tienes otros requisitos.- Todas las columnas se organizarán en carpetas de visualización
- Se establecerán propiedades de columna como Ordenar por
Este script aún no crea relaciones de modelo entre la tabla de fechas creada y los campos de fecha de tu modelo.
Script
Crear tabla de fechas
// To use this C# Script:
//
// 1. Run the script

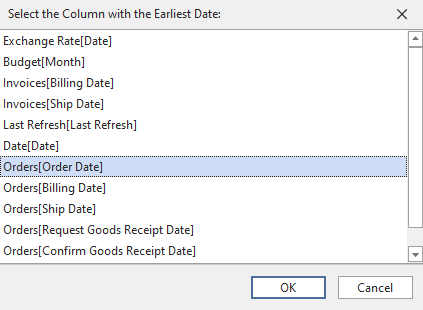

// 2. Select the column that has the earliest date

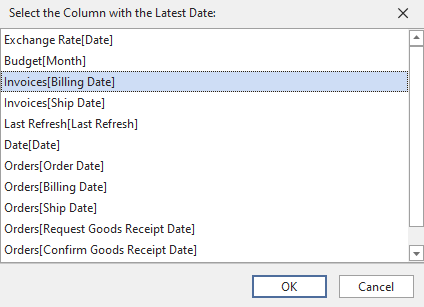

// 3. Select the column that has the latest date
// List of all DateTime columns in the model
var _dateColumns = Model.AllColumns.Where(c => c.DataType == DataType.DateTime ).ToList();
// Select the column with the earliest date in the model
try
{
string _EarliestDate =
SelectColumn(
_dateColumns,
null,
"Select the Column with the Earliest Date:"
).DaxObjectFullName;
try
{
// Select the column with the latest date in the model
string _LatestDate =
SelectColumn(
_dateColumns,
null,
"Select the Column with the Latest Date:"
).DaxObjectFullName;
// Create measure for reference date
var _RefDateMeasure = _dateColumns[0].Table.AddMeasure(
"RefDate",
"CALCULATE ( MAX ( " + _LatestDate + " ), REMOVEFILTERS ( ) )"
);
// Formatted date table DAX
// Based on date table from https://www.sqlbi.com/topics/date-table/
// To adjust, copy everything after the @" into a DAX query window & replace
var _DateDaxExpression = @"-- Reference date for the latest date in the report
-- Until when the business wants to see data in reports
VAR _Refdate_Measure = [RefDate]
VAR _Today = TODAY ( )
-- Replace with ""Today"" if [RefDate] evaluates blank
VAR _Refdate = IF ( ISBLANK ( _Refdate_Measure ), _Today, _Refdate_Measure )
VAR _RefYear = YEAR ( _Refdate )
VAR _RefQuarter = _RefYear * 100 + QUARTER(_Refdate)
VAR _RefMonth = _RefYear * 100 + MONTH(_Refdate)
VAR _RefWeek_EU = _RefYear * 100 + WEEKNUM(_Refdate, 2)
-- Earliest date in the model scope
VAR _EarliestDate = DATE ( YEAR ( MIN ( " + _EarliestDate + @" ) ) - 2, 1, 1 )
VAR _EarliestDate_Safe = MIN ( _EarliestDate, DATE ( YEAR ( _Today ) + 1, 1, 1 ) )
-- Latest date in the model scope
VAR _LatestDate_Safe = DATE ( YEAR ( _Refdate ) + 2, 12, 1 )
------------------------------------------
-- Base calendar table
VAR _Base_Calendar = CALENDAR ( _EarliestDate_Safe, _LatestDate_Safe )
------------------------------------------
------------------------------------------
VAR _IntermediateResult =
ADDCOLUMNS ( _Base_Calendar,
------------------------------------------
""Calendar Year Number (ie 2021)"", --|
YEAR ([Date]), --|-- Year
--|
""Calendar Year (ie 2021)"", --|
FORMAT ([Date], ""YYYY""), --|
------------------------------------------
------------------------------------------
""Calendar Quarter Year (ie Q1 2021)"", --|
""Q"" & --|-- Quarter
CONVERT(QUARTER([Date]), STRING) & --|
"" "" & --|
CONVERT(YEAR([Date]), STRING), --|
--|
""Calendar Year Quarter (ie 202101)"", --|
YEAR([Date]) * 100 + QUARTER([Date]), --|
------------------------------------------
------------------------------------------
""Calendar Month Year (ie Jan 21)"", --|
FORMAT ( [Date], ""MMM YY"" ), --|-- Month
--|
""Calendar Year Month (ie 202101)"", --|
YEAR([Date]) * 100 + MONTH([Date]), --|
--|
""Calendar Month (ie Jan)"", --|
FORMAT ( [Date], ""MMM"" ), --|
--|
""Calendar Month # (ie 1)"", --|
MONTH ( [Date] ), --|
------------------------------------------
------------------------------------------
""Calendar Week EU (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 2 ), --|-- Week
--|
""Calendar Week Number EU (ie 25)"", --|
WEEKNUM( [Date], 2 ), --|
--|
""Calendar Year Week Number EU (ie 202125)"", --|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 2 ), --|
--|
""Calendar Week US (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 1 ), --|
--|
""Calendar Week Number US (ie 25)"", --|
WEEKNUM( [Date], 1 ), --|
--|
""Calendar Year Week Number US (ie 202125)"", --|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 1 ), --|
--|
""Calendar Week ISO (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 21 ), --|
--|
""Calendar Week Number ISO (ie 25)"", --|
WEEKNUM( [Date], 21 ), --|
--|
""Calendar Year Week Number ISO (ie 202125)"",--|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 21 ), --|
------------------------------------------
------------------------------------------
""Weekday Short (i.e. Mon)"", --|
FORMAT ( [Date], ""DDD"" ), --|-- Weekday
--|
""Weekday Name (i.e. Monday)"", --|
FORMAT ( [Date], ""DDDD"" ), --|
--|
""Weekday Number EU (i.e. 1)"", --|
WEEKDAY ( [Date], 2 ), --|
------------------------------------------
------------------------------------------
""Calendar Month Day (i.e. Jan 05)"", --|
FORMAT ( [Date], ""MMM DD"" ), --|-- Day
--|
""Calendar Month Day (i.e. 0105)"", --|
MONTH([Date]) * 100 --|
+ --|
DAY([Date]), --|
--|
""YYYYMMDD"", --|
YEAR ( [Date] ) * 10000 --|
+ --|
MONTH ( [Date] ) * 100 --|
+ --|
DAY ( [Date] ), --|
------------------------------------------
------------------------------------------
""IsDateInScope"", --|
[Date] <= _Refdate --|-- Boolean
&& --|
YEAR([Date]) > YEAR(_EarliestDate), --|
--|
""IsBeforeThisMonth"", --|
[Date] <= EOMONTH ( _Refdate, -1 ), --|
--|
""IsLastMonth"", --|
[Date] <= EOMONTH ( _Refdate, 0 ) --|
&& --|
[Date] > EOMONTH ( _Refdate, -1 ), --|
--|
""IsYTD"", --|
MONTH([Date]) --|
<= --|
MONTH(EOMONTH ( _Refdate, 0 )), --|
--|
""IsActualToday"", --|
[Date] = _Today, --|
--|
""IsRefDate"", --|
[Date] = _Refdate, --|
--|
""IsHoliday"", --|
MONTH([Date]) * 100 --|
+ --|
DAY([Date]) --|
IN {0101, 0501, 1111, 1225}, --|
--|
""IsWeekday"", --|
WEEKDAY([Date], 2) --|
IN {1, 2, 3, 4, 5}) --|
------------------------------------------
VAR _Result =
--------------------------------------------
ADDCOLUMNS ( --|
_IntermediateResult, --|-- Boolean #2
""IsThisYear"", --|
[Calendar Year Number (ie 2021)] --|
= _RefYear, --|
--|
""IsThisMonth"", --|
[Calendar Year Month (ie 202101)] --|
= _RefMonth, --|
--|
""IsThisQuarter"", --|
[Calendar Year Quarter (ie 202101)] --|
= _RefQuarter, --|
--|
""IsThisWeek"", --|
[Calendar Year Week Number EU (ie 202125)]--|
= _RefWeek_EU --|
) --|
--------------------------------------------
RETURN
_Result";
// Create date table
var _date = Model.AddCalculatedTable(
"Date",
_DateDaxExpression
);
//-------------------------------------------------------------------------------------------//
// Sort by...
// Sort Weekdays
(_date.Columns["Weekday Name (i.e. Monday)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Weekday Number EU (i.e. 1)"] as CalculatedTableColumn);
(_date.Columns["Weekday Short (i.e. Mon)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Weekday Number EU (i.e. 1)"] as CalculatedTableColumn);
// Sort Weeks
(_date.Columns["Calendar Week EU (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number EU (ie 25)"] as CalculatedTableColumn);
(_date.Columns["Calendar Week ISO (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number ISO (ie 25)"] as CalculatedTableColumn);
(_date.Columns["Calendar Week US (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number US (ie 25)"] as CalculatedTableColumn);
// Sort Months
(_date.Columns["Calendar Month (ie Jan)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Month # (ie 1)"] as CalculatedTableColumn);
(_date.Columns["Calendar Month Day (i.e. Jan 05)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Month Day (i.e. 0105)"] as CalculatedTableColumn);
(_date.Columns["Calendar Month Year (ie Jan 21)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Month (ie 202101)"] as CalculatedTableColumn);
// Sort Quarters
(_date.Columns["Calendar Quarter Year (ie Q1 2021)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Quarter (ie 202101)"] as CalculatedTableColumn);
// Sort Years
(_date.Columns["Calendar Year (ie 2021)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Number (ie 2021)"] as CalculatedTableColumn);
//-------------------------------------------------------------------------------------------//
// For all the columns in the date table:
foreach (var c in _date.Columns )
{
c.DisplayFolder = "7. Boolean Fields";
c.IsHidden = true;
// Organize the date table into folders
if ( ( c.DataType == DataType.DateTime & c.Name.Contains("Date") ) )
{
c.DisplayFolder = "6. Calendar Date";
c.IsHidden = false;
c.IsKey = true;
}
if ( c.Name == "YYMMDDDD" )
{
c.DisplayFolder = "6. Calendar Date";
c.IsHidden = true;
}
if ( c.Name.Contains("Year") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "1. Year";
c.IsHidden = false;
}
if ( c.Name.Contains("Week") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "4. Week";
c.IsHidden = true;
}
if ( c.Name.Contains("day") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "5. Weekday / Workday\\Weekday";
c.IsHidden = false;
}
if ( c.Name.Contains("Month") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "3. Month";
c.IsHidden = false;
}
if ( c.Name.Contains("Quarter") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "2. Quarter";
c.IsHidden = false;
}
}
// Mark as date table
_date.DataCategory = "Time";
//-------------------------------------------------------------------------------------------//
// Create Workdays MTD, QTD, YTD logic
// (separate into measures & calc. column to be easier to maintain)
//
// Add calculated columns for Workdays MTD, QTD, YTD
string _WorkdaysDax = @"VAR _Holidays =
CALCULATETABLE (
DISTINCT ('Date'[Date]),
'Date'[IsHoliday] <> TRUE
)
VAR _WeekdayName = CALCULATE ( SELECTEDVALUE ( 'Date'[Weekday Short (i.e. Mon)] ) )
VAR _WeekendDays = SWITCH (
_WeekdayName,
""Sat"", 2,
""Sun"", 3,
0
)
VAR _WorkdaysMTD =
CALCULATE (
NETWORKDAYS (
CALCULATE (
MIN ('Date'[Date]),
ALLEXCEPT ('Date', 'Date'[Calendar Month Year (ie Jan 21)])
),
CALCULATE (MAX ('Date'[Date]) - _WeekendDays),
1,
_Holidays
)
)
+ 1
RETURN
IF (_WorkdaysMTD < 1, 1, _WorkdaysMTD)";
_date.AddCalculatedColumn(
"Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Workdays"
);
_date.AddCalculatedColumn(
"Workdays QTD",
_WorkdaysDax.Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]"),
"5. Weekday / Workday\\Workdays"
);
_date.AddCalculatedColumn(
"Workdays YTD",
_WorkdaysDax.Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]"),
"5. Weekday / Workday\\Workdays"
);
//-------------------------------------------------------------------------------------------//
// Create measures for showing how many workdays passed
_WorkdaysDax = @"CALCULATE(
MAX( 'Date'[Workdays MTD] ),
'Date'[IsDateInScope] = TRUE
)";
_date.AddMeasure(
"# Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays QTD",
_WorkdaysDax.Replace("MTD", "QTD"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays YTD",
_WorkdaysDax.Replace("MTD", "YTD"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
// Create measures showing how many workdays are in the selected period
_WorkdaysDax = @"IF (
HASONEVALUE ('Date'[Calendar Month Year (ie Jan 21)]),
CALCULATE (
MAX ('Date'[Workdays MTD]),
VALUES ('Date'[Calendar Month Year (ie Jan 21)])
)
)";
_date.AddMeasure(
"# Workdays in Selected Month",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays in Selected Quarter",
_WorkdaysDax.Replace("MTD", "QTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays in Selected Year",
_WorkdaysDax.Replace("MTD", "YTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
// Create measures showing how many workdays passed as a %
_WorkdaysDax = @"IF (
HASONEVALUE ('Date'[Calendar Month Year (ie Jan 21)]),
MROUND (
DIVIDE ([# Workdays MTD], [# Workdays in Selected Month]),
0.01
)
)";
_date.AddMeasure(
"% Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"% Workdays QTD",
_WorkdaysDax.Replace("MTD", "QTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]").Replace("Month", "Quarter"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"% Workdays YTD",
_WorkdaysDax.Replace("MTD", "YTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]").Replace("Month", "Year"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
//-------------------------------------------------------------------------------------------//
// Move the reference measure to the newly created 'Date' table.
_RefDateMeasure.Delete();
_RefDateMeasure = Model.Tables["Date"].AddMeasure(
"RefDate",
"CALCULATE ( MAX ( " + _LatestDate + " ), REMOVEFILTERS ( ) )",
"0. Measures"
);
_RefDateMeasure.IsHidden = true;

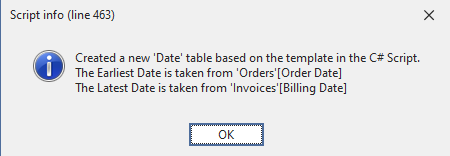

Info ( "Created a new, organized 'Date' table based on the template in the C# Script.\nThe Earliest Date is taken from " + _EarliestDate + "\nThe Latest Date is taken from " + _LatestDate );
}
catch
{
Error( "Latest column not selected! Ending script without making changes." );
}
}
catch
{
Error( "Earliest column not selected! Ending script without making changes." );
}
Explicación
Este fragmento toma las columnas seleccionadas y crea una medida para resaltar la fecha máxima para los informes. Después, crea una tabla Date con formato con las columnas comunes que se usan para los informes. La tabla de fechas solo contiene fechas del calendario, no períodos fiscales.

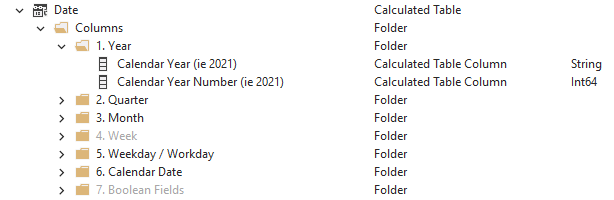

Salida de ejemplo
