Implementing Detail Rows Expressions

  • 2026-02-15
  • Just Blindbæk
Applies to:
  • ✔ Tabular Editor 2
  • Tabular Editor 3
    ✔ Desktop
    ✔ Business
    ✔ Enterprise

When a user double-clicks a value in an Excel PivotTable connected to a Power BI or Analysis Services model, they trigger a drillthrough — a sheet opens showing the underlying rows behind that aggregated value. By default, the model returns all columns from the measure's host table, which is rarely useful for end users.

A Detail Rows Expression lets you define exactly which columns appear in that drillthrough result. You write a DAX table expression that returns the shape of data you want the consumer to see — combining columns from the fact table with related attributes from dimension tables.

It is also worth noting that while an Excel PivotTable normally queries the model using MDX, a double-click drillthrough action is executed as a DAX query. This makes Detail Rows Expressions particularly effective for retrieving high-cardinality data — such as transaction IDs or individual order lines — where DAX significantly outperforms MDX.

In this tutorial, you configure a table-level Detail Rows Expression on the Orders table, so the same friendly drillthrough result applies to all measures on that table. You then see how to override it for a specific measure.

Note

The steps in this tutorial apply to both Tabular Editor 2 and Tabular Editor 3. Screenshots show Tabular Editor 3.

Prerequisites

Before you begin, you should have:

  • Tabular Editor 2 or Tabular Editor 3
  • A semantic model with at least one table containing measures
  • Basic familiarity with DAX
  • Excel connected to your model to test drillthrough

Default Drillthrough Behavior

Before adding a Detail Rows Expression, it helps to see what end users experience by default.

When a user double-clicks an aggregated value in a PivotTable, the model returns all columns from the fact table — using raw internal column names, with no dimension attributes and no control over which columns are shown.

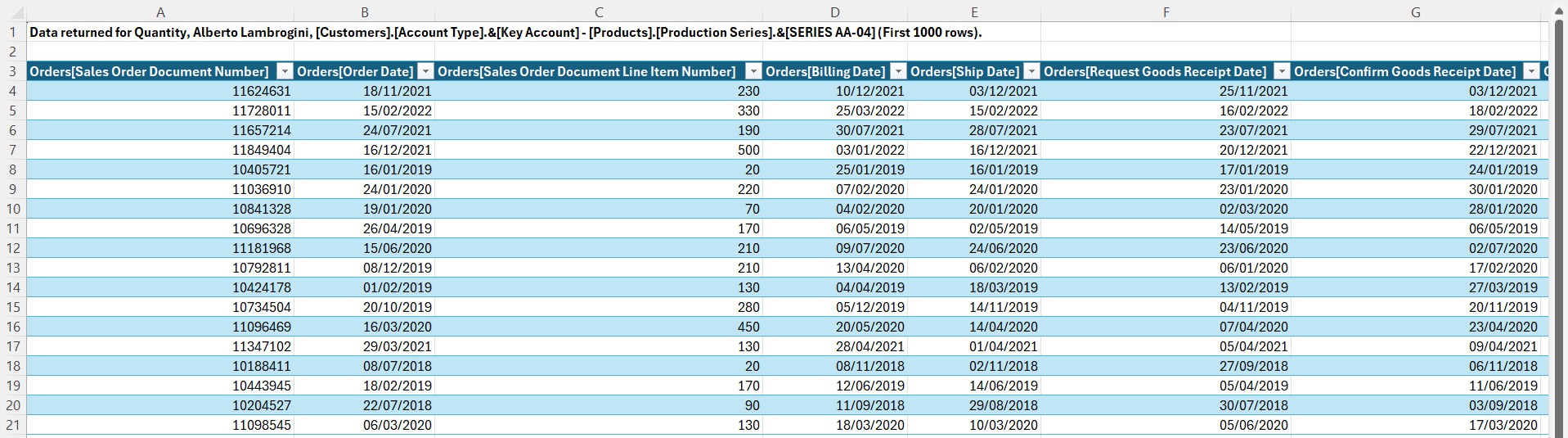

Default drillthrough result in Excel showing raw, unformatted column names from the fact table

The result is technically correct, but not useful: internal column names are exposed, related dimension attributes such as product names and customer accounts are missing, and there is no control over column order or selection.

Table-Level vs. Measure-Level Detail Rows Expressions

A Detail Rows Expression can be defined at two levels:

Level Property name Scope
Table Default Detail Rows Expression Applies to all measures on the table
Measure Detail Rows Expression Applies to that measure only; overrides the table-level expression

Starting with a table-level expression is the most practical approach — one expression covers every measure on the table. If a specific measure requires different detail columns, you can override it with a measure-level expression, which takes precedence.

Creating a Table-Level Detail Rows Expression

Step 1: Select the table and locate the property

In the TOM Explorer, select the table you want to configure — in this case, the Orders table. In the Properties panel, find the Default Detail Rows Expression field under the Options group.

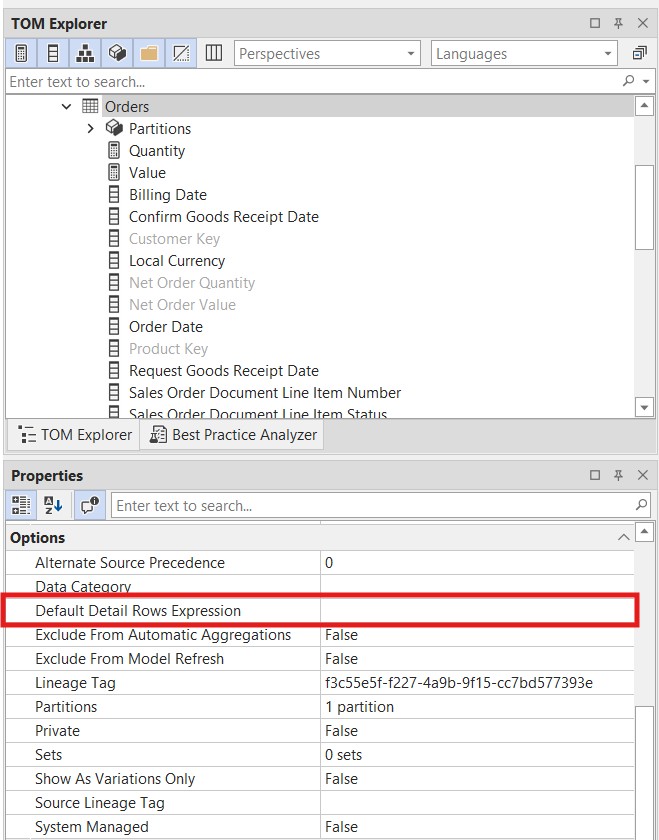

The Orders table selected in TOM Explorer, with the Default Detail Rows Expression property visible and empty in the Properties panel

Step 2: Open the Expression Editor

Click the Default Detail Rows Expression field to open it in the Expression Editor.

Step 3: Write the SELECTCOLUMNS expression

Enter a DAX expression using SELECTCOLUMNS to define the columns to return. Use RELATED() to bring in columns from dimension tables.

SELECTCOLUMNS(
    Orders,
    "Order Date", Orders[Order Date],
    "Product Name", RELATED( Products[Product Name] ),
    "Account Name", RELATED( Customers[Account Name] ),
    "Sales Order Document Number", Orders[Sales Order Document Number],
    "Quantity", [Quantity],
    "Value", [Value]
)

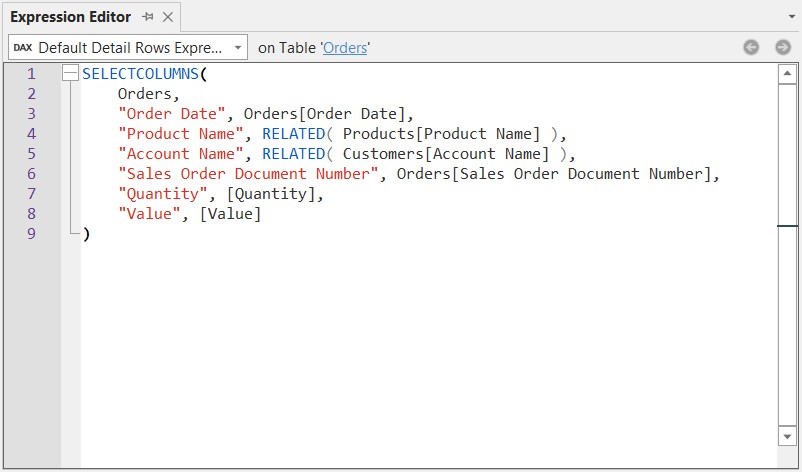

The SELECTCOLUMNS expression entered in the Expression Editor, targeting the Orders table

SELECTCOLUMNS takes the source table as its first argument, followed by pairs of "Column Name", expression:

  • Columns from the Orders fact table are referenced directly: Orders[Order Date], Orders[Sales Order Document Number]
  • Columns from related dimension tables are retrieved using RELATED(): Products[Product Name], Customers[Account Name]
  • Measures can also be included: [Quantity], [Value]
Note

RELATED() works here because SELECTCOLUMNS iterates over rows of the Orders table, giving each row a row context that allows navigation to related tables via existing relationships.

Tip

While SELECTCOLUMNS is the standard pattern, any valid DAX table expression can be used. For example, you can wrap the expression in CALCULATETABLE to apply additional filters, use ADDCOLUMNS to include derived values, or call DETAILROWS to reuse another measure's Detail Rows Expression and avoid duplication.

Step 4: Save the model

Save with Ctrl+S and deploy or publish the model to your target environment.

Testing the Result

Open or refresh your Excel PivotTable and double-click any aggregated value. The drillthrough sheet now shows the columns you defined — with friendly names and dimension attributes included.

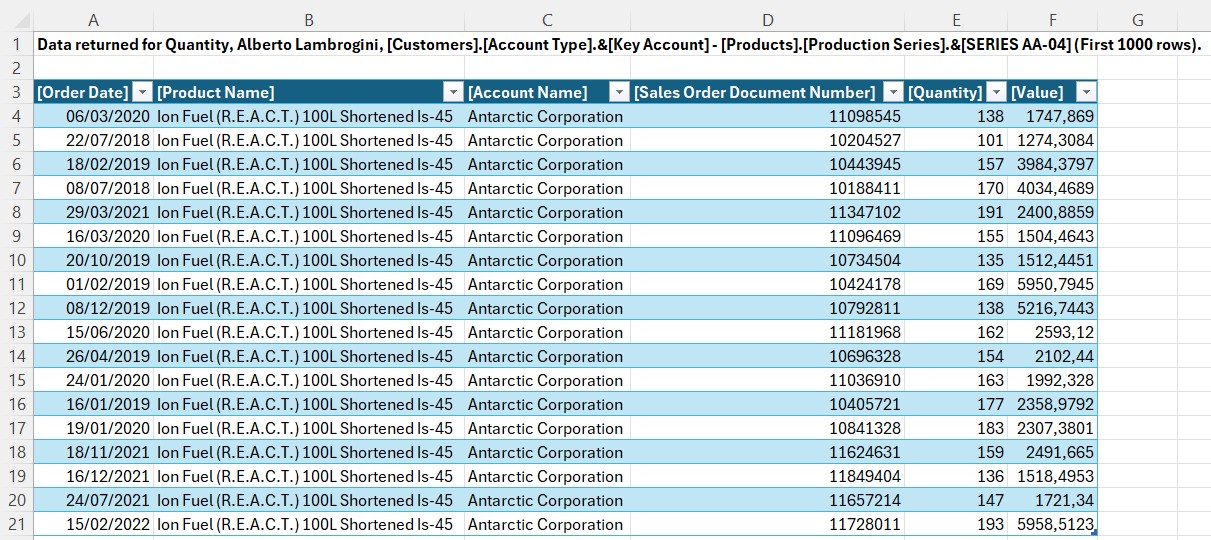

Drillthrough result in Excel showing the custom columns defined in the Detail Rows Expression

Compare this to the default result: instead of raw internal column names, users see meaningful headers and values pulled from related dimension tables.

Overriding with a Measure-Level Expression

If a specific measure requires a different set of detail columns, you can define a Detail Rows Expression directly on that measure. This overrides the table-level expression for that measure only.

  1. In the TOM Explorer, expand the table and select the measure — for example, Quantity under Orders.
  2. In the Properties panel, find the Detail Rows Expression field.
  3. Enter a SELECTCOLUMNS expression tailored to that measure.
SELECTCOLUMNS(
    Orders,
    "Order Date", Orders[Order Date],
    "Billing Date", Orders[Billing Date],
    "Confirm Goods Receipt Date", Orders[Confirm Goods Receipt Date],
    "Product Name", RELATED( Products[Product Name] ),
    "Product MK", RELATED( Products[MK] ),
    "Account Name", RELATED( Customers[Account Name] ),
    "Sales Order Document Number", Orders[Sales Order Document Number],
    "Quantity", [Quantity]
)

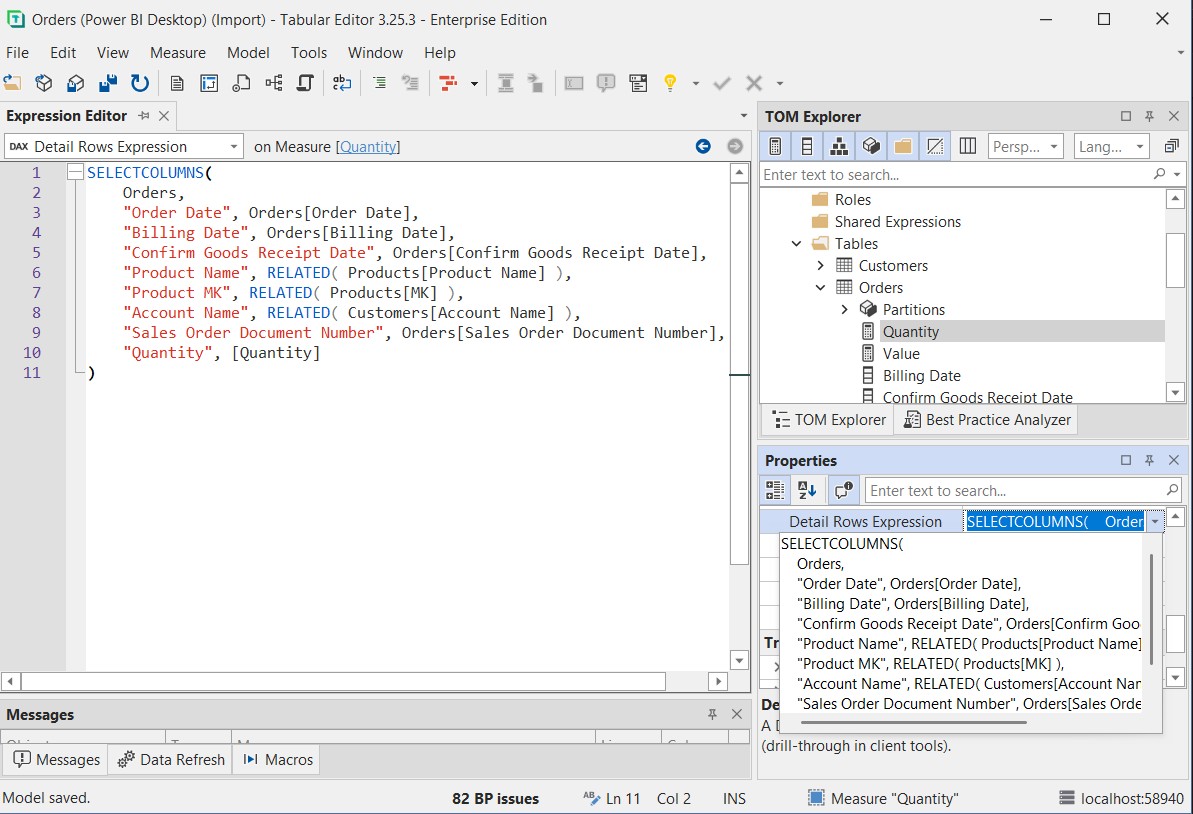

A measure-specific Detail Rows Expression defined on the Quantity measure, visible in both the Expression Editor and the Properties panel

When a client tool requests drillthrough for this measure, the measure-level expression is used instead of the table default.

Troubleshooting

Drillthrough still shows raw columns The model may not have been saved and deployed after adding the expression. Save the model, redeploy, and reconnect Excel before testing.

Expression not applied to a specific measure If you have defined both a table-level and a measure-level expression, the measure-level takes precedence. Verify which expression is active by selecting the measure in the Properties panel and checking the Detail Rows Expression field.

RELATED() returns an error RELATED() requires an active many-to-one relationship from the source table to the referenced dimension table. Check that the relationship exists and is active in your model.
