创建日期表
脚本用途
你可以使用此脚本，基于模型中所选的 1-2 个日期列创建一张新的、结构清晰且已配置好的日期表。第一个选中的列应包含最早日期，第二个选中的列应包含最晚日期。运行脚本/宏之前，请先同时选中这两列。
此脚本将在模型中创建以下对象：
- 一个度量值
[RefDate]，其值为模型范围内的最新日期；例如：最后一个销售日。你可以手动调整该度量值，然后重新处理日期表，以便基于不同的参考日期重新生成（即如果你想将其改为 TODAY() 或添加筛选器） 'Date'表——如果你有其他需求，可以在单独的 DAX 查询窗口中配置该表，然后将内容复制回脚本。- 所有列都会归入显示文件夹中
- 将设置“排序依据”等列属性
此脚本目前不会在创建的日期表与模型中的日期字段之间创建关系。
脚本
创建日期表
// To use this C# Script:
//
// 1. Run the script

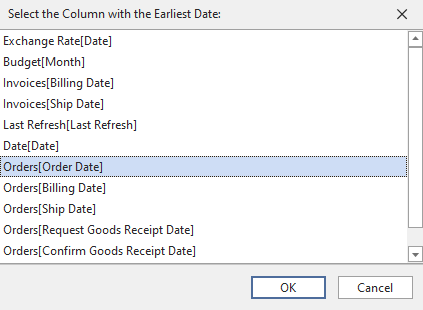

// 2. Select the column that has the earliest date

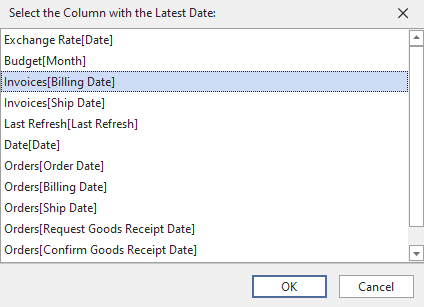

// 3. Select the column that has the latest date
// List of all DateTime columns in the model
var _dateColumns = Model.AllColumns.Where(c => c.DataType == DataType.DateTime ).ToList();
// Select the column with the earliest date in the model
try
{
string _EarliestDate =
SelectColumn(
_dateColumns,
null,
"Select the Column with the Earliest Date:"
).DaxObjectFullName;
try
{
// Select the column with the latest date in the model
string _LatestDate =
SelectColumn(
_dateColumns,
null,
"Select the Column with the Latest Date:"
).DaxObjectFullName;
// Create measure for reference date
var _RefDateMeasure = _dateColumns[0].Table.AddMeasure(
"RefDate",
"CALCULATE ( MAX ( " + _LatestDate + " ), REMOVEFILTERS ( ) )"
);
// Formatted date table DAX
// Based on date table from https://www.sqlbi.com/topics/date-table/
// To adjust, copy everything after the @" into a DAX query window & replace
var _DateDaxExpression = @"-- Reference date for the latest date in the report
-- Until when the business wants to see data in reports
VAR _Refdate_Measure = [RefDate]
VAR _Today = TODAY ( )
-- Replace with ""Today"" if [RefDate] evaluates blank
VAR _Refdate = IF ( ISBLANK ( _Refdate_Measure ), _Today, _Refdate_Measure )
VAR _RefYear = YEAR ( _Refdate )
VAR _RefQuarter = _RefYear * 100 + QUARTER(_Refdate)
VAR _RefMonth = _RefYear * 100 + MONTH(_Refdate)
VAR _RefWeek_EU = _RefYear * 100 + WEEKNUM(_Refdate, 2)
-- Earliest date in the model scope
VAR _EarliestDate = DATE ( YEAR ( MIN ( " + _EarliestDate + @" ) ) - 2, 1, 1 )
VAR _EarliestDate_Safe = MIN ( _EarliestDate, DATE ( YEAR ( _Today ) + 1, 1, 1 ) )
-- Latest date in the model scope
VAR _LatestDate_Safe = DATE ( YEAR ( _Refdate ) + 2, 12, 1 )
------------------------------------------
-- Base calendar table
VAR _Base_Calendar = CALENDAR ( _EarliestDate_Safe, _LatestDate_Safe )
------------------------------------------
------------------------------------------
VAR _IntermediateResult =
ADDCOLUMNS ( _Base_Calendar,
------------------------------------------
""Calendar Year Number (ie 2021)"", --|
YEAR ([Date]), --|-- Year
--|
""Calendar Year (ie 2021)"", --|
FORMAT ([Date], ""YYYY""), --|
------------------------------------------
------------------------------------------
""Calendar Quarter Year (ie Q1 2021)"", --|
""Q"" & --|-- Quarter
CONVERT(QUARTER([Date]), STRING) & --|
"" "" & --|
CONVERT(YEAR([Date]), STRING), --|
--|
""Calendar Year Quarter (ie 202101)"", --|
YEAR([Date]) * 100 + QUARTER([Date]), --|
------------------------------------------
------------------------------------------
""Calendar Month Year (ie Jan 21)"", --|
FORMAT ( [Date], ""MMM YY"" ), --|-- Month
--|
""Calendar Year Month (ie 202101)"", --|
YEAR([Date]) * 100 + MONTH([Date]), --|
--|
""Calendar Month (ie Jan)"", --|
FORMAT ( [Date], ""MMM"" ), --|
--|
""Calendar Month # (ie 1)"", --|
MONTH ( [Date] ), --|
------------------------------------------
------------------------------------------
""Calendar Week EU (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 2 ), --|-- Week
--|
""Calendar Week Number EU (ie 25)"", --|
WEEKNUM( [Date], 2 ), --|
--|
""Calendar Year Week Number EU (ie 202125)"", --|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 2 ), --|
--|
""Calendar Week US (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 1 ), --|
--|
""Calendar Week Number US (ie 25)"", --|
WEEKNUM( [Date], 1 ), --|
--|
""Calendar Year Week Number US (ie 202125)"", --|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 1 ), --|
--|
""Calendar Week ISO (ie WK25)"", --|
""WK"" & WEEKNUM( [Date], 21 ), --|
--|
""Calendar Week Number ISO (ie 25)"", --|
WEEKNUM( [Date], 21 ), --|
--|
""Calendar Year Week Number ISO (ie 202125)"",--|
YEAR ( [Date] ) * 100 --|
+ --|
WEEKNUM( [Date], 21 ), --|
------------------------------------------
------------------------------------------
""Weekday Short (i.e. Mon)"", --|
FORMAT ( [Date], ""DDD"" ), --|-- Weekday
--|
""Weekday Name (i.e. Monday)"", --|
FORMAT ( [Date], ""DDDD"" ), --|
--|
""Weekday Number EU (i.e. 1)"", --|
WEEKDAY ( [Date], 2 ), --|
------------------------------------------
------------------------------------------
""Calendar Month Day (i.e. Jan 05)"", --|
FORMAT ( [Date], ""MMM DD"" ), --|-- Day
--|
""Calendar Month Day (i.e. 0105)"", --|
MONTH([Date]) * 100 --|
+ --|
DAY([Date]), --|
--|
""YYYYMMDD"", --|
YEAR ( [Date] ) * 10000 --|
+ --|
MONTH ( [Date] ) * 100 --|
+ --|
DAY ( [Date] ), --|
------------------------------------------
------------------------------------------
""IsDateInScope"", --|
[Date] <= _Refdate --|-- Boolean
&& --|
YEAR([Date]) > YEAR(_EarliestDate), --|
--|
""IsBeforeThisMonth"", --|
[Date] <= EOMONTH ( _Refdate, -1 ), --|
--|
""IsLastMonth"", --|
[Date] <= EOMONTH ( _Refdate, 0 ) --|
&& --|
[Date] > EOMONTH ( _Refdate, -1 ), --|
--|
""IsYTD"", --|
MONTH([Date]) --|
<= --|
MONTH(EOMONTH ( _Refdate, 0 )), --|
--|
""IsActualToday"", --|
[Date] = _Today, --|
--|
""IsRefDate"", --|
[Date] = _Refdate, --|
--|
""IsHoliday"", --|
MONTH([Date]) * 100 --|
+ --|
DAY([Date]) --|
IN {0101, 0501, 1111, 1225}, --|
--|
""IsWeekday"", --|
WEEKDAY([Date], 2) --|
IN {1, 2, 3, 4, 5}) --|
------------------------------------------
VAR _Result =
--------------------------------------------
ADDCOLUMNS ( --|
_IntermediateResult, --|-- Boolean #2
""IsThisYear"", --|
[Calendar Year Number (ie 2021)] --|
= _RefYear, --|
--|
""IsThisMonth"", --|
[Calendar Year Month (ie 202101)] --|
= _RefMonth, --|
--|
""IsThisQuarter"", --|
[Calendar Year Quarter (ie 202101)] --|
= _RefQuarter, --|
--|
""IsThisWeek"", --|
[Calendar Year Week Number EU (ie 202125)]--|
= _RefWeek_EU --|
) --|
--------------------------------------------
RETURN
_Result";
// Create date table
var _date = Model.AddCalculatedTable(
"Date",
_DateDaxExpression
);
//-------------------------------------------------------------------------------------------//
// Sort by...
// Sort Weekdays
(_date.Columns["Weekday Name (i.e. Monday)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Weekday Number EU (i.e. 1)"] as CalculatedTableColumn);
(_date.Columns["Weekday Short (i.e. Mon)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Weekday Number EU (i.e. 1)"] as CalculatedTableColumn);
// Sort Weeks
(_date.Columns["Calendar Week EU (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number EU (ie 25)"] as CalculatedTableColumn);
(_date.Columns["Calendar Week ISO (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number ISO (ie 25)"] as CalculatedTableColumn);
(_date.Columns["Calendar Week US (ie WK25)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Week Number US (ie 25)"] as CalculatedTableColumn);
// Sort Months
(_date.Columns["Calendar Month (ie Jan)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Month # (ie 1)"] as CalculatedTableColumn);
(_date.Columns["Calendar Month Day (i.e. Jan 05)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Month Day (i.e. 0105)"] as CalculatedTableColumn);
(_date.Columns["Calendar Month Year (ie Jan 21)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Month (ie 202101)"] as CalculatedTableColumn);
// Sort Quarters
(_date.Columns["Calendar Quarter Year (ie Q1 2021)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Quarter (ie 202101)"] as CalculatedTableColumn);
// Sort Years
(_date.Columns["Calendar Year (ie 2021)"] as CalculatedTableColumn).SortByColumn = (_date.Columns["Calendar Year Number (ie 2021)"] as CalculatedTableColumn);
//-------------------------------------------------------------------------------------------//
// For all the columns in the date table:
foreach (var c in _date.Columns )
{
c.DisplayFolder = "7. Boolean Fields";
c.IsHidden = true;
// Organize the date table into folders
if ( ( c.DataType == DataType.DateTime & c.Name.Contains("Date") ) )
{
c.DisplayFolder = "6. Calendar Date";
c.IsHidden = false;
c.IsKey = true;
}
if ( c.Name == "YYMMDDDD" )
{
c.DisplayFolder = "6. Calendar Date";
c.IsHidden = true;
}
if ( c.Name.Contains("Year") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "1. Year";
c.IsHidden = false;
}
if ( c.Name.Contains("Week") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "4. Week";
c.IsHidden = true;
}
if ( c.Name.Contains("day") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "5. Weekday / Workday\\Weekday";
c.IsHidden = false;
}
if ( c.Name.Contains("Month") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "3. Month";
c.IsHidden = false;
}
if ( c.Name.Contains("Quarter") & c.DataType != DataType.Boolean )
{
c.DisplayFolder = "2. Quarter";
c.IsHidden = false;
}
}
// Mark as date table
_date.DataCategory = "Time";
//-------------------------------------------------------------------------------------------//
// Create Workdays MTD, QTD, YTD logic
// (separate into measures & calc. column to be easier to maintain)
//
// Add calculated columns for Workdays MTD, QTD, YTD
string _WorkdaysDax = @"VAR _Holidays =
CALCULATETABLE (
DISTINCT ('Date'[Date]),
'Date'[IsHoliday] <> TRUE
)
VAR _WeekdayName = CALCULATE ( SELECTEDVALUE ( 'Date'[Weekday Short (i.e. Mon)] ) )
VAR _WeekendDays = SWITCH (
_WeekdayName,
""Sat"", 2,
""Sun"", 3,
0
)
VAR _WorkdaysMTD =
CALCULATE (
NETWORKDAYS (
CALCULATE (
MIN ('Date'[Date]),
ALLEXCEPT ('Date', 'Date'[Calendar Month Year (ie Jan 21)])
),
CALCULATE (MAX ('Date'[Date]) - _WeekendDays),
1,
_Holidays
)
)
+ 1
RETURN
IF (_WorkdaysMTD < 1, 1, _WorkdaysMTD)";
_date.AddCalculatedColumn(
"Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Workdays"
);
_date.AddCalculatedColumn(
"Workdays QTD",
_WorkdaysDax.Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]"),
"5. Weekday / Workday\\Workdays"
);
_date.AddCalculatedColumn(
"Workdays YTD",
_WorkdaysDax.Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]"),
"5. Weekday / Workday\\Workdays"
);
//-------------------------------------------------------------------------------------------//
// Create measures for showing how many workdays passed
_WorkdaysDax = @"CALCULATE(
MAX( 'Date'[Workdays MTD] ),
'Date'[IsDateInScope] = TRUE
)";
_date.AddMeasure(
"# Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays QTD",
_WorkdaysDax.Replace("MTD", "QTD"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays YTD",
_WorkdaysDax.Replace("MTD", "YTD"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
// Create measures showing how many workdays are in the selected period
_WorkdaysDax = @"IF (
HASONEVALUE ('Date'[Calendar Month Year (ie Jan 21)]),
CALCULATE (
MAX ('Date'[Workdays MTD]),
VALUES ('Date'[Calendar Month Year (ie Jan 21)])
)
)";
_date.AddMeasure(
"# Workdays in Selected Month",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays in Selected Quarter",
_WorkdaysDax.Replace("MTD", "QTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"# Workdays in Selected Year",
_WorkdaysDax.Replace("MTD", "YTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
// Create measures showing how many workdays passed as a %
_WorkdaysDax = @"IF (
HASONEVALUE ('Date'[Calendar Month Year (ie Jan 21)]),
MROUND (
DIVIDE ([# Workdays MTD], [# Workdays in Selected Month]),
0.01
)
)";
_date.AddMeasure(
"% Workdays MTD",
_WorkdaysDax,
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"% Workdays QTD",
_WorkdaysDax.Replace("MTD", "QTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Quarter Year (ie Q1 2021)]").Replace("Month", "Quarter"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
_date.AddMeasure(
"% Workdays YTD",
_WorkdaysDax.Replace("MTD", "YTD").Replace("'Date'[Calendar Month Year (ie Jan 21)]", "'Date'[Calendar Year (ie 2021)]").Replace("Month", "Year"),
"5. Weekday / Workday\\Measures\\# Workdays"
);
//-------------------------------------------------------------------------------------------//
// Move the reference measure to the newly created 'Date' table.
_RefDateMeasure.Delete();
_RefDateMeasure = Model.Tables["Date"].AddMeasure(
"RefDate",
"CALCULATE ( MAX ( " + _LatestDate + " ), REMOVEFILTERS ( ) )",
"0. Measures"
);
_RefDateMeasure.IsHidden = true;

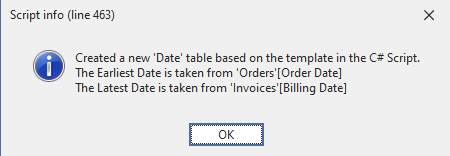

Info ( "Created a new, organized 'Date' table based on the template in the C# Script.\nThe Earliest Date is taken from " + _EarliestDate + "\nThe Latest Date is taken from " + _LatestDate );
}
catch
{
Error( "Latest column not selected! Ending script without making changes." );
}
}
catch
{
Error( "Earliest column not selected! Ending script without making changes." );
}
说明
此代码段会获取你所选的列，并创建一个度量值，用于在 Report 中显示最大日期。随后会创建一张格式化的 Date 表，其中包含用于制作 Report 的常用列。该日期表仅包含日历日期，不包含财务期间。

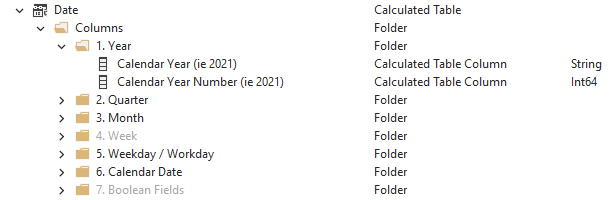

示例输出
