配置增量刷新
脚本用途
如果你想基于某个特定的日期字段为导入表配置增量刷新。
此脚本适用于你希望配置增量刷新的 datetime、date 或 integer 日期列。
要使用此脚本，请在要配置增量刷新的表中选中日期列，然后运行脚本。 仅当你尚未创建 #"RangeStart" 和 #"RangeEnd" 参数，并且所选表尚未配置刷新策略时，脚本才会运行。
Note
此脚本会自动修改该表的 M 分区，以添加筛选步骤。 请务必检查是否已正确完成。
如果你有很多步骤，务必将此步骤移动到可以折叠到数据源的位置。 请确保在 Power Query 中调整所有 `#"Step References"
Note
此脚本会使用用户输入来生成刷新策略。 请确保在用户输入对话框中输入正确的值。
脚本
为所选列实现增量刷新
// This script will automatically generate an Incremental Refresh policy for a selected table
// It is generated based on the selected column
// It requires input from the user with a dialogue pop-up box.
// This script will automatically generate an Incremental Refresh policy for a selected table
// It is generated based on the selected column
// It requires input from the user with a dialogue pop-up box.
using System.Drawing;
using System.Windows.Forms;
// Hide the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;
// Initialize Variables
Table _Table = Model.Tables[0];
string _MExpression = "";
Column _Column = Model.AllColumns.ToList()[0];
string _ColumnName = "";
DataType _ColumnDataType = DataType.DateTime;
try
{
// Select a Table for which you will configure Incremental Refresh.
// The Refresh Policy will be enabled and configured for this table.
_Table =
Model.Tables.Where(
// Exclude tables that already have a refresh policy
t =>
t.EnableRefreshPolicy != true &&
// Include only 'Table' objects
t.ObjectType == ObjectType.Table &&
// Exclude Calculated Tables
t.Columns[0].Type != ColumnType.CalculatedTableColumn &&
// Only include tables that have a column on the "From" side of the relationship
(Model.Relationships.Count() > 0 ?
t.Columns.Any(c => Model.Relationships.Any(r => r.FromColumn == c) ) : true) &&
// Exclude tables that don't have a DateTime or Integer column
(
t.Columns.Any(c => c.DataType == DataType.DateTime) ||
t.Columns.Any(c => c.DataType == DataType.Int64)
)
).SelectTable(null,"Select a Table for which you will configure Incremental Refresh:");
_MExpression = _Table.Partitions[0].Expression;
try
{
// Select the column to apply the Refresh Policy.
// The M Expression will be modified using the name of this column.
_Column =
_Table.Columns.Where(
// Include only DateTime or Int columns
c =>
c.DataType == DataType.DateTime ||
c.DataType == DataType.Int64
).SelectColumn(null, "Select a DateTime or DateKey (Int) Column to apply the Refresh Policy.");
_ColumnName = _Column.DaxObjectName;
_ColumnDataType = _Column.DataType;
try
{ // Test if 'RangeStart' exists
Model.Expressions.Contains(Model.Expressions["RangeStart"]);
Info ("RangeStart already exists!");
}
catch
{
// Add RangeStart parameter
Model.AddExpression(
"RangeStart",
@"
#datetime(2023, 01, 01, 0, 0, 0) meta
[
IsParameterQuery = true,
IsParameterQueryRequired = true,
Type = type datetime
]"
);
// Success message for adding 'RangeStart'
Info ( "Created 'RangeStart' M Parameter!" );
}
// Test if the RangeEnd parameter exists
try
{ // Test if 'RangeEnd' exists
Model.Expressions.Contains(Model.Expressions["RangeEnd"]);
Info ("RangeEnd already exists!");
}
catch
{
// Add RangeEnd parameter
Model.AddExpression(
"RangeEnd",
@"
#datetime(2023, 31, 01, 0, 0, 0) meta
[
IsParameterQuery = true,
IsParameterQueryRequired = true,
Type = type datetime
]"
);
// Success message for adding 'RangeEnd'
Info ( "Created 'RangeEnd' M Parameter!" );
}
// Incremental Refresh Configuration
// Input box config
Font _fontConfig = new Font("Segoe UI", 11);
// Label for how long data should be stored
var storeDataLabel = new Label();
storeDataLabel.Text = "Store data in the last:";
storeDataLabel.Location = new Point(20, 20);
storeDataLabel.AutoSize = true;
storeDataLabel.Font = _fontConfig;
// User input for how long data should be stored
var storeDataTextBox = new TextBox();
storeDataTextBox.Location = new Point(storeDataLabel.Location.X + TextRenderer.MeasureText(storeDataLabel.Text, storeDataLabel.Font).Width + 20, storeDataLabel.Location.Y);
storeDataTextBox.Size = new Size(100, 20);
storeDataTextBox.Text = "3";
storeDataTextBox.Font = _fontConfig;
// User selection for how long data should be stored (granularity)
var storeDataComboBox = new ComboBox();
storeDataComboBox.Location = new Point(storeDataTextBox.Location.X + storeDataTextBox.Width + 20, storeDataLabel.Location.Y);
storeDataComboBox.Size = new Size(100, 20);
storeDataComboBox.DropDownStyle = ComboBoxStyle.DropDownList;
storeDataComboBox.Items.AddRange(new object[] { "days", "months", "quarters", "years" });
storeDataComboBox.SelectedIndex = 3;
storeDataComboBox.Font = _fontConfig;
// Label for how much data should be refreshed
var refreshDataLabel = new Label();
refreshDataLabel.Text = "Refresh data in the last:";
refreshDataLabel.Location = new Point(20, storeDataLabel.Location.Y + storeDataLabel.Height + 15);
refreshDataLabel.AutoSize = true;
refreshDataLabel.Font = _fontConfig;
// User input for how much data should be refreshed
var refreshDataTextBox = new TextBox();
refreshDataTextBox.Location = new Point(storeDataTextBox.Location.X, refreshDataLabel.Location.Y);
refreshDataTextBox.Size = new Size(100, 20);
refreshDataTextBox.Text = "30";
refreshDataTextBox.Font = _fontConfig;
// User selection for how much data should be refreshed (Period)
var refreshDataComboBox = new ComboBox();
refreshDataComboBox.Location = new Point(storeDataComboBox.Location.X, refreshDataLabel.Location.Y);
refreshDataComboBox.Size = new Size(100, 20);
refreshDataComboBox.DropDownStyle = ComboBoxStyle.DropDownList;
refreshDataComboBox.Items.AddRange(new object[] { "days", "months", "quarters", "years" });
refreshDataComboBox.SelectedIndex = 0;
refreshDataComboBox.Font = _fontConfig;
// User input to refresh full periods or not
var fullPeriodsCheckBox = new CheckBox();
fullPeriodsCheckBox.Text = "Refresh only full periods";
fullPeriodsCheckBox.Location = new Point(storeDataLabel.Location.X + 3, refreshDataLabel.Location.Y + refreshDataLabel.Height + 15);
fullPeriodsCheckBox.AutoSize = true;
fullPeriodsCheckBox.Font = _fontConfig;
// Form OK button
var okButton = new Button();
okButton.Text = "OK";
okButton.Location = new Point(storeDataLabel.Location.X, fullPeriodsCheckBox.Location.Y + fullPeriodsCheckBox.Height + 15);
okButton.MinimumSize = new Size(80, 25);
okButton.AutoSize = true;
okButton.DialogResult = DialogResult.OK;
okButton.Font = _fontConfig;
// Form cancel button
var cancelButton = new Button();
cancelButton.Text = "Cancel";
cancelButton.Location = new Point(okButton.Location.X + okButton.Width + 10, okButton.Location.Y);
cancelButton.MinimumSize = new Size(80, 25);
cancelButton.AutoSize = true;
cancelButton.DialogResult = DialogResult.Cancel;
cancelButton.Font = _fontConfig;
// Adjust the Location of the storeDataLabel to align with the storeDataTextBox
storeDataLabel.Location = new Point(storeDataLabel.Location.X, storeDataLabel.Location.Y + 4);
refreshDataLabel.Location = new Point(refreshDataLabel.Location.X, refreshDataLabel.Location.Y + 4);

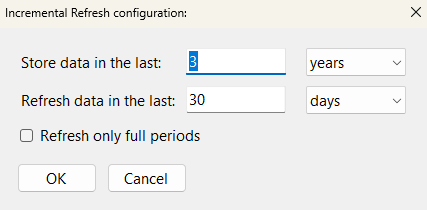

// Form config
var form = new Form();
form.Text = "Incremental Refresh configuration:";
form.AutoSize = true;
form.MinimumSize = new Size(450, 0);
form.FormBorderStyle = FormBorderStyle.FixedDialog;
form.MaximizeBox = false;
form.MinimizeBox = false;
// Open the dialogue in the center of the screen
form.StartPosition = FormStartPosition.CenterScreen;
// Set the AutoScaleMode property to Dpi
form.AutoScaleMode = AutoScaleMode.Dpi;
// Add controls to form specified above
form.Controls.Add(storeDataLabel);
form.Controls.Add(storeDataTextBox);
form.Controls.Add(storeDataComboBox);
form.Controls.Add(refreshDataLabel);
form.Controls.Add(refreshDataTextBox);
form.Controls.Add(refreshDataComboBox);
form.Controls.Add(fullPeriodsCheckBox);
form.Controls.Add(okButton);
form.Controls.Add(cancelButton);
// Draw the form
var result = form.ShowDialog();
// Get the values of the user input if entered
if (result == DialogResult.OK)
{
// Enables the refresh policy
_Table.EnableRefreshPolicy = true;
var storeDataValue = storeDataTextBox.Text;
var storeDataComboBoxValue = storeDataComboBox.SelectedItem.ToString();
var refreshDataValue = refreshDataTextBox.Text;
var refreshDataComboBoxValue = refreshDataComboBox.SelectedItem.ToString();
var fullPeriodsChecked = fullPeriodsCheckBox.Checked;
// Display the input values in a message box
var message = string.Format(
"Store data in the last: {0} {1}" +
"\nRefresh data in the last: {2} {3}" +
"\nRefresh only full periods: {4}",
storeDataTextBox.Text,
storeDataComboBox.SelectedItem.ToString(),
refreshDataTextBox.Text,
refreshDataComboBox.SelectedItem.ToString(),
fullPeriodsCheckBox.Checked);
Info(message);
// Convert StoreDataGranularity to correct TOM Property
RefreshGranularityType StoreDataGranularity = RefreshGranularityType.Day;
switch (storeDataComboBox.SelectedItem.ToString())
{
case "years":
StoreDataGranularity = RefreshGranularityType.Year;
break;
case "quarters":
StoreDataGranularity = RefreshGranularityType.Quarter;
break;
case "months":
StoreDataGranularity = RefreshGranularityType.Month;
break;
case "days":
StoreDataGranularity = RefreshGranularityType.Day;
break;
default:
Error("Bad selection for Incremental Granularity.");
break;
}
// Convert IncrementalGranularity to correct TOM Property
RefreshGranularityType IncrementalPeriodGranularity = RefreshGranularityType.Year;
switch (refreshDataComboBox.SelectedItem.ToString())
{
case "years":
IncrementalPeriodGranularity = RefreshGranularityType.Year;
break;
case "quarters":
IncrementalPeriodGranularity = RefreshGranularityType.Quarter;
break;
case "months":
IncrementalPeriodGranularity = RefreshGranularityType.Month;
break;
case "days":
IncrementalPeriodGranularity = RefreshGranularityType.Day;
break;
default:
Error ( "Bad selection for Incremental Granularity." );
break;
}
// Convert RefreshCompletePeriods checkbox to correct TOM property
int RefreshCompletePeriods;
if ( fullPeriodsCheckBox.Checked == true )
{
RefreshCompletePeriods = -1;
}
else
{
RefreshCompletePeriods = 0;
}
// Set incremental window: period to be refreshed
_Table.IncrementalGranularity = IncrementalPeriodGranularity;
// Default: 30 days - change # if you want
_Table.IncrementalPeriods = Convert.ToInt16(refreshDataTextBox.Text);
// Only refresh complete days. Change to 0 if you don't want.
_Table.IncrementalPeriodsOffset = RefreshCompletePeriods;
// Set rolling window: period to be archived
// Granularity = day, can change to month, quarter, year...
_Table.RollingWindowGranularity = StoreDataGranularity;
// Keep data for 1 year. Includes 1 full year and current partial year
// i.e. if it is Nov 2023, keeps data from Jan 1, 2022.
// On Jan 1, 2024, it will drop 2022 automatically.
_Table.RollingWindowPeriods = Convert.ToInt16(storeDataTextBox.Text);
// If the selected date column is an integer of type YYYYMMDD...
if ( _ColumnDataType == DataType.Int64 )
{
// Add DateTimeToInt Function
var _DateTimeToInt =
Model.AddExpression(
"fxDateTimeToInt",
@"(x as datetime) => Date.Year(x) * 10000 + Date.Month(x) * 100 + Date.Day(x)"
);
_DateTimeToInt.SetAnnotation("PBI_ResultType", "Function");
_DateTimeToInt.Kind = ExpressionKind.M;
// Source expression obtained from the original M partition
_Table.SourceExpression =
// Gets expression before final "in" keyword
_MExpression.Split("\nin")[0].TrimEnd() +
// Adds comma and newline
",\n" +
// Adds step called "Incremental Refresh" for filtering
@" #""Incremental Refresh"" = Table.SelectRows( " +
// Gets name of last step (after "in" keyword)
_MExpression.Split("\nin")[1].TrimStart() +
// Adds 'each' keyword
@", each " +
// Bases incremental refresh on current column name
_ColumnName +
// Greater than or equal to RangeStart
@" >= fxDateTimeToInt ( #""RangeStart"" ) and " +
// and
_ColumnName +
// Less than RangeEnd
@" < fxDateTimeToInt ( #""RangeEnd"" ) )" +
// re-add 'in' keyword
"\nin\n" +
// Reference final step just added
@" #""Incremental Refresh""";
}
// Otherwise treat it like a normal date/datetime column
else
{
// Source expression obtained from the original M partition
_Table.SourceExpression =
// Gets expression before final "in" keyword
_MExpression.Split("\nin")[0].TrimEnd() +
// Adds comma and newline
",\n" +
// Adds step called "Incremental Refresh" for filtering
@" #""Incremental Refresh"" = Table.SelectRows( " +
// Gets name of last step (after "in" keyword)
_MExpression.Split("\nin")[1].TrimStart() +
// Adds 'each' keyword
@", each " +
// Bases incremental refresh on current column name
_ColumnName +
// Greater than or equal to RangeStart
@" >= Date.From ( #""RangeStart"" ) and " +
// and
_ColumnName +
// Less than RangeEnd
@" < Date.From ( #""RangeEnd"" ) )" +
// re-add 'in' keyword
"\nin\n" +
// Reference final step just added
@" #""Incremental Refresh""";
}
// Success message for Refresh Policy configuration
Info (
"Successfully configured the Incremental Refresh policy.\n" +
"\nSelect the table and right-click on 'Apply Refresh Policy...'" +
"\nSelect & peform a 'Full Refresh' of all new policy partitons that are created."
);
}
else if (result == DialogResult.Cancel)
{
// if the user clicks the Cancel button, close the form and exit the script
form.Close();
Error ( "Cancelled configuration! Ending script without changes." );
return;
}
}
catch
{
Error( "No valid column selected! Ending script without changes." );
}
}
catch
{
Error( "No valid table selected! Ending script without changes." );
}
说明
此代码片段会基于所选日期列，在所选表中配置增量刷新。

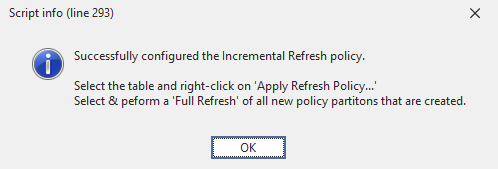

示例输出
