查看/删除有错误的度量值

• 2023-02-28
• Kurt Buhler

Applies to:

• ❌ Tabular Editor 2
• ✔ Tabular Editor 3

脚本用途

如果你想查看所有包含错误的度量值，并可选择将其从模型中删除，同时将被删除的度量值备份为 .tsv 文件并保存到你选定的目录（以便之后需要时再添加回来）。

脚本

查看并删除有错误的度量值

// This script scans the model and shows all measures with errors, giving the option to remove them.
//
// .GetCachedSemantics(...) method is only available in TE3
using System.Windows.Forms;

// Hide the 'Running Macro' spinbox
ScriptHelper.WaitFormVisible = false;

// Get all the measures that have errors
var measuresWithError = Model.AllMeasures.Where(m => m.GetCachedSemantics(ExpressionProperty.Expression).HasError).ToList();
//Prior to Tabular Editor 3.12.0 the GetSemantics method must be used.
//var measuresWithError = Model.AllMeasures.Where(m => m.GetSemantics(ExpressionProperty.Expression).HasError).ToList();

// If no measures with errors, end script with error.
if ( measuresWithError.Count == 0 )
{
Info ( "No measures with errors! 👍" );
}

// Handle erroneous measures
else
{

// View the list of measures with an error
measuresWithError.Output();

//   From the list, you can select 1 or more measures to delete
var _ToDelete = SelectObjects(measuresWithError, measuresWithError, "Select measures to delete.\nYou will be able to export a back-up, later.");

    // Delete the selected measures
    try
    {
        foreach ( var _m in _ToDelete )
            {
                _m.Delete();
            }

        Info (
            "Deleted " +
            Convert.ToString(_ToDelete.Count()) +
            " measures with errors."
        );

        // Create an instance of the FolderBrowserDialog class
        FolderBrowserDialog folderBrowserDialog = new FolderBrowserDialog();

        // Set the title of the dialog box
        folderBrowserDialog.Description = "Select a directory to output a backup of the deleted measures.";

        // Set the root folder of the dialog box
        folderBrowserDialog.RootFolder = Environment.SpecialFolder.MyComputer;

        // Show the dialog box and get the result
        DialogResult result = folderBrowserDialog.ShowDialog();

        // Check if the user clicked the OK button and get the selected path
        if (result == DialogResult.OK && !string.IsNullOrWhiteSpace(folderBrowserDialog.SelectedPath))
            {
                // Get the output path as a string
                string _outputPath = folderBrowserDialog.SelectedPath;

                // Get the properties of the deleted measures
                var _backup = ExportProperties( _ToDelete );

                // Save a backup of the deleted measures
                SaveFile( _outputPath + "/DeletedMeasures-" + Model.Name + DateTime.Today.ToString("-yyyy-MM-dd") + ".tsv", _backup);

                Info (
                    "Exported a backup of " +
                    Convert.ToString(_ToDelete.Count()) +
                    " Measures to " +
                    _outputPath
                );
            }
    }
    catch
    // Display an info box if no measure was selected
    {
    Info ( "No measure selected." );
    }
}

说明

此代码片段会根据 Tabular Editor 的语义分析，获取所有包含错误的度量值。随后会在输出框中显示这些度量值，你可以手动浏览它们或进行修改。之后，你可以选择要删除的度量值。被删除的度量值可以保存为 .tsv 备份文件，方便你之后需要时再导入。

输出示例

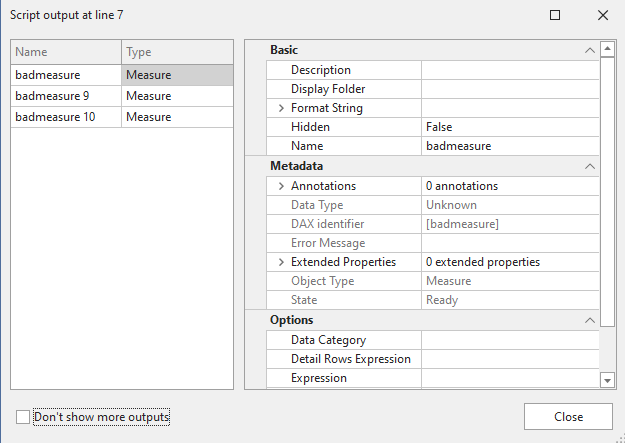

图 1：该输出对话框允许你查看并编辑根据 Analysis Services 语义分析判定为“有错误”的度量值。

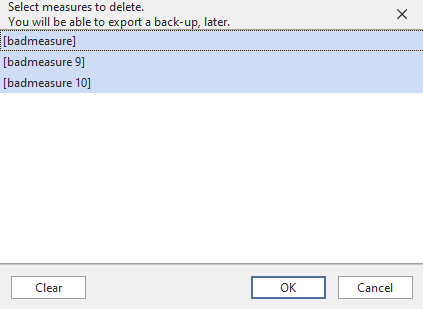

图 2：可选择有错误的度量值并将其删除。

图 3：确认对话框会提示度量值已成功删除。

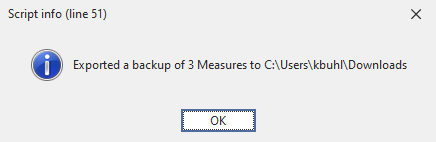

图 4：还可以选择将度量值的属性和定义备份为 .tsv 文件并保存到本地目录，以便日后需要时重新添加。
